TXB322 HAGER KNX input module 2 potential-free inputs + 2 LED outputs flush-mounted
Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

TXB322 HAGER KNX input module 2 potential-free inputs + 2 LED outputs flush-mounted

Hager

compare
TXB322 - HAGER

Flush-mounted KNX module with 2 inputs for potential-free contacts and SELV controls, plus 2 outputs for LEDs (Imax 0.85 mA - 5 V DC). The inputs are programmable with functions such as push button, switch, dimmer, up/down. Compact and discreet, it is easily installed behind push buttons or switches in boxes with a minimum depth of 40 mm. Ideal for advanced home automation systems. Configurable in easy and System modes. Flush-mounted KNX module with 2 inputs for potential-free contacts and SELV controls, plus 2 outputs for LEDs (Imax 0.85 mA - 5 V DC). The inputs are programmable with functions such as push button, switch, dimmer, up/down. Compact and discreet, it is easily installed behind push buttons or switches in boxes with a minimum depth of 40 mm. Ideal for advanced home automation systems. Configurable in easy and System modes.

MPNs TXB322, HAGTXB322
EAN 3250616049079
HS Code 85176200
Country of origin Poland
Weight 0.04 kg
Volumetric weight 0.04 kg
Download Datasheet

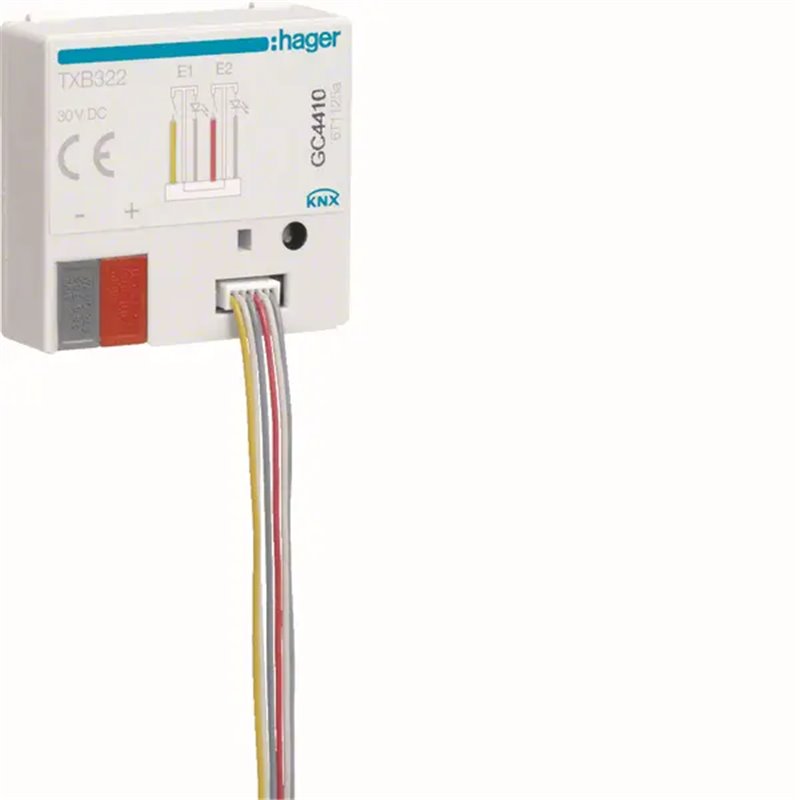

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Technical specifications

Degree of protection (IP)
IP20
Input voltage
5;5 V
Mounting method
Flush-mounted
Type of voltage (input voltage)
DC
With LED indication
TRUE
Number of inputs
2
Other bus systems
None
With bus connection
TRUE
Min. depth of built-in installation box
40 mm
Bus system KNX
TRUE
External signal voltage necessary
TRUE
LED controlling
TRUE
