166-32216 HellermannTyton - LTS16-FMC-PG13-NPB/PA6-ML

HellermannTyton

compare
166-32216 HellermannTyton - LTS16-FMC-PG13-NPB/PA6-ML
166-32216 HellermannTyton - LTS16-FMC-PG13-NPB/PA6-ML

Fixed Thread Compression Fitting IP68 ø16mm PG13 Fixed Thread Compression Fitting IP68 ø16mm PG13

MPNs 166-32216, HEE166-32216, LTS16-FMC-PG13-NPB/PA6-ML
EAN 4031026327884
HS Code 74122000
Country of origin United Kingdom(excl.North.Ireland)
Weight 0.04 kg

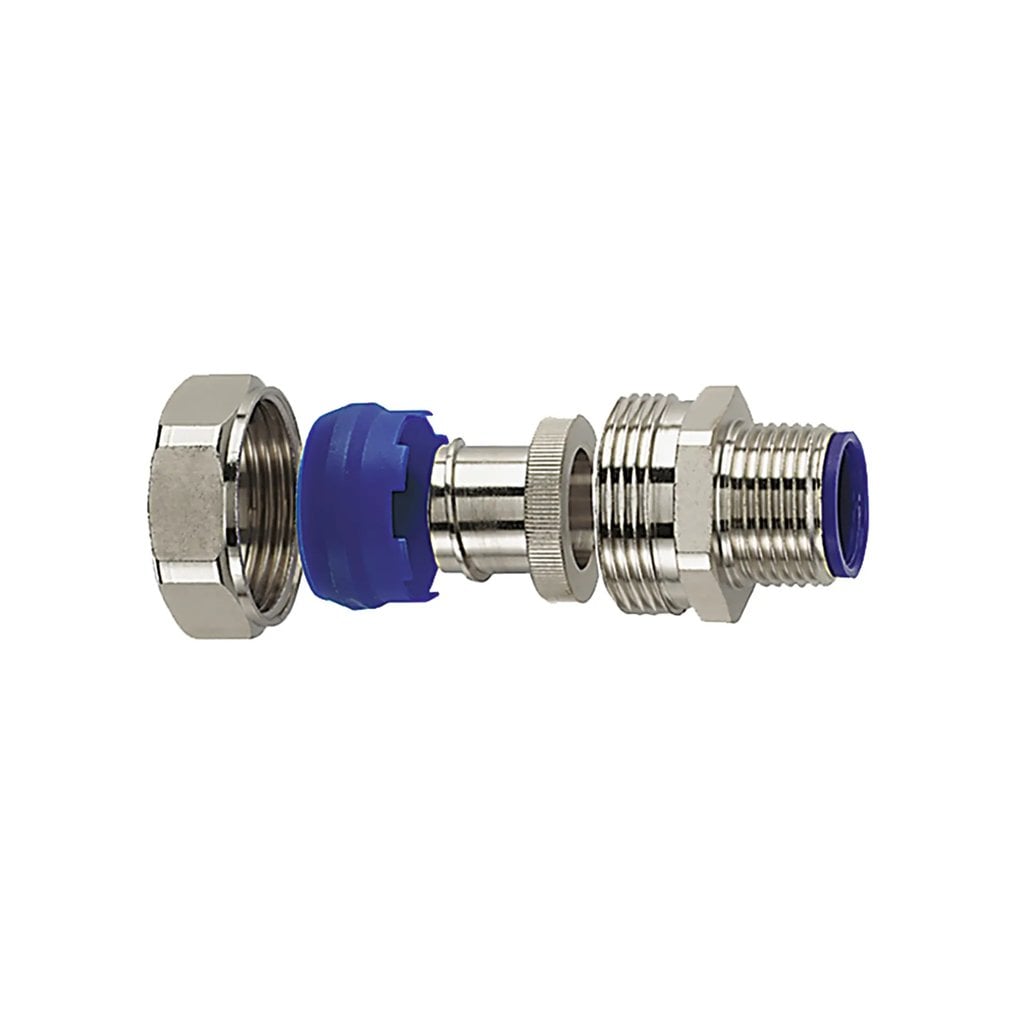

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

This product can only be returned in case of defects covered by the warranty.

View our return policy

Available on request

Minimum order quantity - 10

Need a smaller quantity? Contact us!

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Compression fitting composed of several elements with elastomeric gasket. Provides excellent resistance to tearing. Can be used on threaded holes as the fitting rotates until fully tightened. Male thread, nickel-plated brass.Degree of protection IP66, IP67, IP68 and IP69K. Compression fitting composed of several elements with elastomeric gasket. Provides excellent resistance to tearing. Can be used on threaded holes as the fitting rotates until fully tightened. Male thread, nickel-plated brass.Degree of protection IP66, IP67, IP68 and IP69K.

Technical specifications

Construction type
External thread
Housing material
Brass
Surface protection
Nickel-plated
Model
Straight
Total length
31.0 mm
Nominal diameter
16 mm
Operating temperature
-50;135 °C
Thread type
Other
Thread length
10.0 mm
Nominal size in inch
3/8 inch
Lowest inner diameter hose
10.7 mm
Number of thread lashes
1
Thread connection size
PG13.5
Degree of protection (IP) conduit dependant
66;66
Connection type screw connection to housing
Thread
