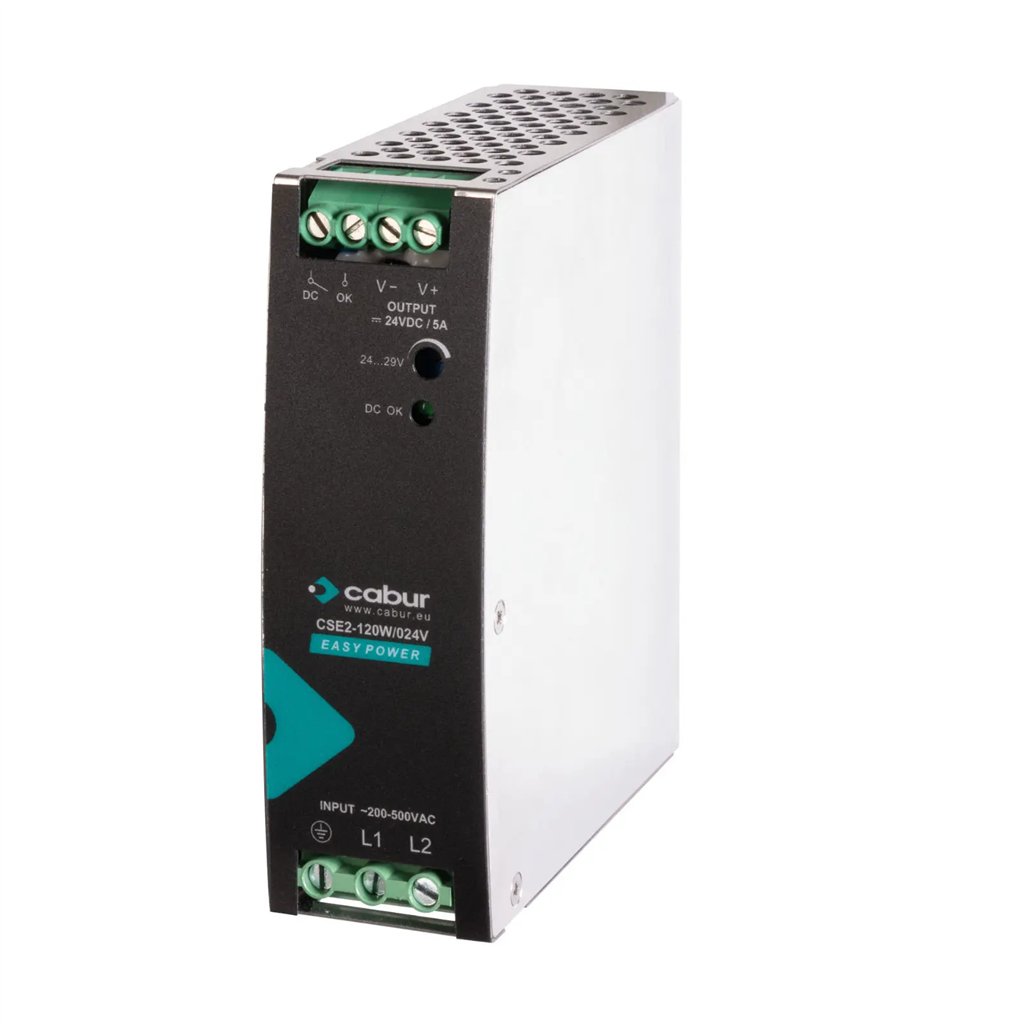

XCSE2120W024VAA - Cabur - Single-/two-phase power supply input 180-550Vac / output 24Vdc 5A

<div class="container-fluid"> <h3>CSE Easy Power Line 1-2-phase DIN-rail power supply for 24 Vdc control cabinets</h3> <p>The CSE Easy Power Line is the new CSE product family engineered for reliable DC distribution in automation panels and standard industrial machines. Designed for DIN-rail installation, it helps standardize power architecture across plants by combining wide input compatibility, stable 24 Vdc output, and protection functions aligned with everyday industrial operation.</p> <h4>Wide AC and DC input for flexible installations</h4> <p>This 1-2-phase switching power supply accepts 180–550 Vac at 47–63 Hz and also supports 254–780 Vdc. Current consumption is specified at 1.2 A on 230 Vac and 0.8 A on 400 Vac, with an inrush peak current of 50 A at 400 Vac. These characteristics make it suitable for control cabinets fed by 230 Vac, 400 Vac, or mixed infrastructures where standardization matters.</p> <h4>Stable 24 Vdc output with adjustment range</h4> <ul> <li>Output voltage 24 Vdc, adjustable 24–29 Vdc</li> <li>Continuous current 5.0 A with overload limiting at 6.5 A</li> <li>Ripple at nominal ratings: 120 mVpp</li> <li>Hold-up time: 10 ms at 230 Vac and 50 ms at 400 Vac</li> </ul> <h4>Monitoring and protection for uptime</h4> <p>Status indication is provided via a DC OK LED and a dry alarm contact (max 1 A). The unit includes short-circuit capability with a 30 A peak for 100 ms and supports redundant parallel concepts using an external ORing diode. With IP20 degree of protection, 3 kVac input/output isolation, and an operating temperature range of -25°C to +70°C with derating above 60°C, the CSE Easy Power Line delivers a compact, panel-ready solution for 24 Vdc loads such as PLC interfaces, sensors, relays, and auxiliary circuits.</p> </div> :contentReference[oaicite:1]{index=1} <div class="container-fluid"> <h3>CSE Easy Power Line 1-2-phase DIN-rail power supply for 24 Vdc control cabinets</h3> <p>The CSE Easy Power Line is the new CSE product family engineered for reliable DC distribution in automation panels and standard industrial machines. Designed for DIN-rail installation, it helps standardize power architecture across plants by combining wide input compatibility, stable 24 Vdc output, and protection functions aligned with everyday industrial operation.</p> <h4>Wide AC and DC input for flexible installations</h4> <p>This 1-2-phase switching power supply accepts 180–550 Vac at 47–63 Hz and also supports 254–780 Vdc. Current consumption is specified at 1.2 A on 230 Vac and 0.8 A on 400 Vac, with an inrush peak current of 50 A at 400 Vac. These characteristics make it suitable for control cabinets fed by 230 Vac, 400 Vac, or mixed infrastructures where standardization matters.</p> <h4>Stable 24 Vdc output with adjustment range</h4> <ul> <li>Output voltage 24 Vdc, adjustable 24–29 Vdc</li> <li>Continuous current 5.0 A with overload limiting at 6.5 A</li> <li>Ripple at nominal ratings: 120 mVpp</li> <li>Hold-up time: 10 ms at 230 Vac and 50 ms at 400 Vac</li> </ul> <h4>Monitoring and protection for uptime</h4> <p>Status indication is provided via a DC OK LED and a dry alarm contact (max 1 A). The unit includes short-circuit capability with a 30 A peak for 100 ms and supports redundant parallel concepts using an external ORing diode. With IP20 degree of protection, 3 kVac input/output isolation, and an operating temperature range of -25°C to +70°C with derating above 60°C, the CSE Easy Power Line delivers a compact, panel-ready solution for 24 Vdc loads such as PLC interfaces, sensors, relays, and auxiliary circuits.</p> </div> :contentReference[oaicite:1]{index=1}
