SPK806 HAGER SPD IT 2P for industrial bus networks

Hager

compare
SPK806 - HAGER

Surge protection device (SPD) specifically designed for targeted protection of industrial bus networks against indirect transient overvoltages. Classified as Type IT SPD, it is ideal for integration into TN-S or TT systems. With a nominal discharge current (In) of 5 kA and a protection level (Up) of 0.08 kV, it requires 0.5 DIN modules. Surge protection device (SPD) specifically designed for targeted protection of industrial bus networks against indirect transient overvoltages. Classified as Type IT SPD, it is ideal for integration into TN-S or TT systems. With a nominal discharge current (In) of 5 kA and a protection level (Up) of 0.08 kV, it requires 0.5 DIN modules.

MPNs SPK806, HAGSPK806
EAN 3250615515117
HS Code 85363030
Country of origin Germany
Weight 0.04 kg
Download Datasheet

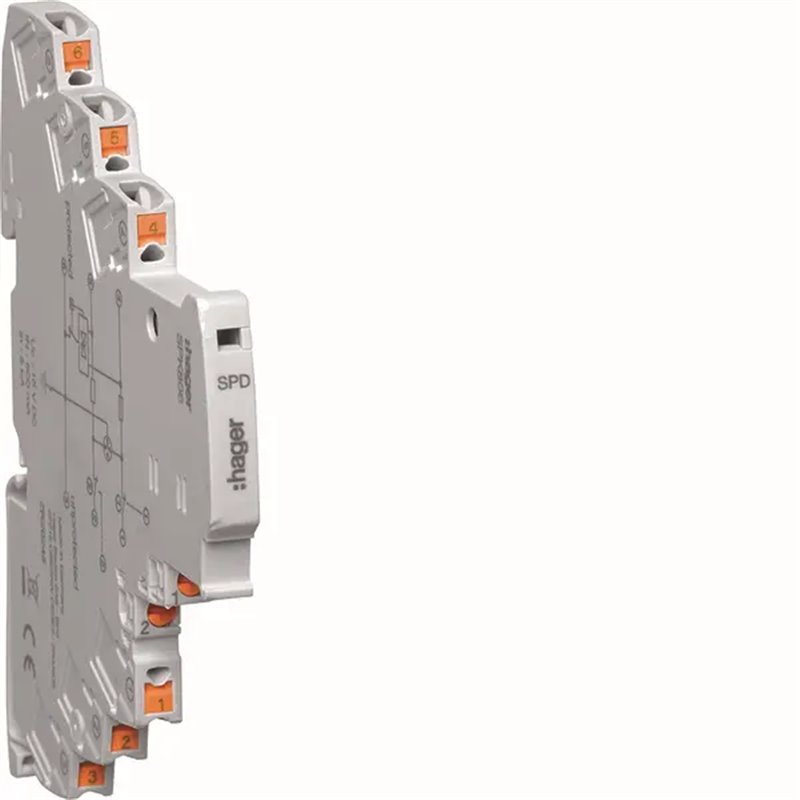

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Technical specifications

Degree of protection (IP)
IP20
Mounting method
DIN rail (top hat rail) 35 mm
Number of conductors (without earthing)
6
Nominal discharge surge current (8/20)
5 kA
Max. continuous voltage DC
30 V
Max. continuous voltage AC
30 V
Frequency
0.000049999999999999996;0.000059999999999999995 Hz
With remote signalling contact
TRUE
Signalling at the device
Optical
Lightning impulse current (10/350 µs)
0.5 kA
Connection 1
Clamp
Voltage protection level core/core
750 V
Voltage protection level core/earth
55 V
Nominal voltage DC
24;24 V
Nominal voltage AC
12;12 V
Assembly width
6.2 mm
Earthing via
Separate conductor
