VBA-4E3A-CB-E/E2-S PEPPERL+FUCHS - Part number: 121679
NFS
Out of Stock - Backorder
To order from manufacturer
USD263.65

Import Taxes Excluded

You must be logged

VBA-4E3A-CB-E/E2-S PEPPERL+FUCHS - Part number: 121679

PEPPERL+FUCHS

compare
VBA-4E3A-CB-E/E2-S PEPPERL+FUCHS - Part number: 121679

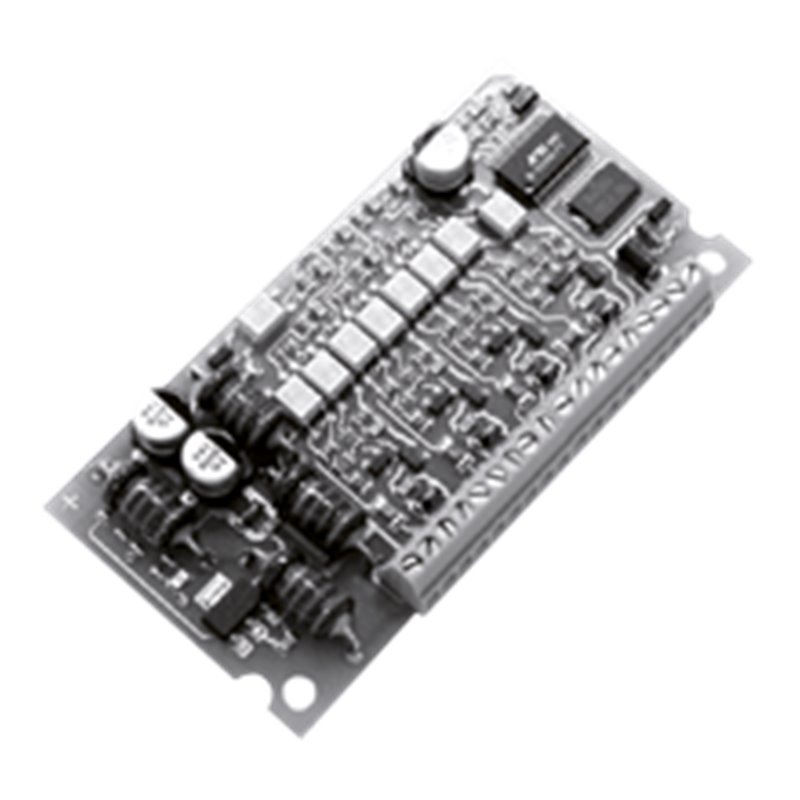

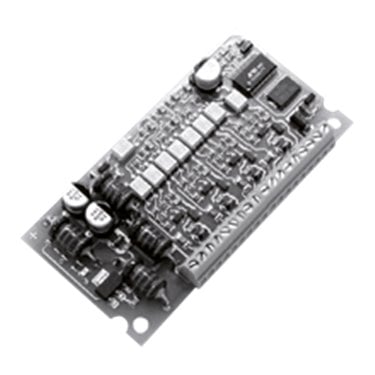

AS-Interface printed circuit board VBA-4E3A-CB-E/E2-S VBA-4E3A-CB-E/E2-S A/B node with extended addressing possibility for up to 62 nodes Integrated communication monitoring function Inputs and outputs short-circuit and overload proof No external power supply required Connection via screw terminals AS-Interface printed circuit board VBA-4E3A-CB-E/E2-S VBA-4E3A-CB-E/E2-S A/B node with extended addressing possibility for up to 62 nodes Integrated communication monitoring function Inputs and outputs short-circuit and overload proof No external power supply required Connection via screw terminals

MPNs 121679, PEP121679, VBA-4E3A-CB-E/E2-S
HS Code 85371091
Weight N/A
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

NFS Condition NFS
New Factory Sealed - Original
Out of Stock - Backorder
To order from manufacturer
USD263.65

Import Taxes Excluded

You must be logged
Sold by PLC-CITY® and shipped from Italy
We are a Specialist Partner of PEPPERL+FUCHS
Free express shipping to United States
Loader...
View all shipping services
Request a quote to know the delivery date

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Datasheet excerpt: Technical data of  VBA-4E3A-CB-E/E2-S Product Description Printed circuit board module 4 inputs / 3 outputs General specifications Node typeA/B node AS-Interface specificationV2.1 Required gateway specification≥ V2.0 Electrical specifications Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 20 mA (without sensors) Protection classIII Input Number/TypeFour inputs for mechanical contacts, two-wire and three-wire sensors Supplyfrom AS-Interface Voltage21 ... 31 V Input current≤ 8 mA (limited internally) Switching pointUin < 2 V: aus> Uin > 10 V: on Output Number/Type3 electronic outputs, PNP Supplyfrom AS-Interface Voltage21 ... 31 V Current≤ 80 mA per output, ≤ 80 mA total Programming instructions ProfileS-7.A.E IO code7 ID codeA ID2 codeE Data bits (function via AS-Interface)InputOutput D0 IN1 OUT1 D1 IN2 OUT2 D2 IN3 OUT3 D3 IN4 - Parameter bits (programmable via AS-i)function P0not used P1not used P2not used P3not used Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP20 (completely fitted) according to EN 60529 Connectionscrew terminal strip Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535 Datasheet excerpt: Technical data of  VBA-4E3A-CB-E/E2-S Product Description Printed circuit board module 4 inputs / 3 outputs General specifications Node typeA/B node AS-Interface specificationV2.1 Required gateway specification≥ V2.0 Electrical specifications Rated operating voltage26.5 ... 31.6 V from AS-Interface Rated operating current≤ 20 mA (without sensors) Protection classIII Input Number/TypeFour inputs for mechanical contacts, two-wire and three-wire sensors Supplyfrom AS-Interface Voltage21 ... 31 V Input current≤ 8 mA (limited internally) Switching pointUin < 2 V: aus> Uin > 10 V: on Output Number/Type3 electronic outputs, PNP Supplyfrom AS-Interface Voltage21 ... 31 V Current≤ 80 mA per output, ≤ 80 mA total Programming instructions ProfileS-7.A.E IO code7 ID codeA ID2 codeE Data bits (function via AS-Interface)InputOutput D0 IN1 OUT1 D1 IN2 OUT2 D2 IN3 OUT3 D3 IN4 - Parameter bits (programmable via AS-i)function P0not used P1not used P2not used P3not used Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP20 (completely fitted) according to EN 60529 Connectionscrew terminal strip Classifications SystemClasscode ECLASS 11.027242604 ECLASS 10.0.127242604 ECLASS 9.027242604 ECLASS 8.027242604 ECLASS 5.127242604 ETIM 8.0EC001599 ETIM 7.0EC001599 ETIM 6.0EC001599 ETIM 5.0EC001599 UNSPSC 12.139121535
