CP1E-E10DT-D - Omron - Control Systems - Series CP1E-E
Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

CP1E-E10DT-D - Omron - Control Systems - Series CP1E-E

Omron

compare
CP1E-E10DT-D - Omron - Control Systems - Series CP1E-E

CP1E-E CPU, 6 24VDC inputs and 4 NPN transistor outputs, 24VDC power supply CP1E-E CPU, 6 24VDC inputs and 4 NPN transistor outputs, 24VDC power supply

MPNs CP1EE10DTD, OMRCP1EE10DTD, CP1E-E10DT-D
EAN 4547648800839
HS Code 84716070
Country of origin China
Weight 0.36 kg
Volumetric weight 0.36 kg
Download Datasheet

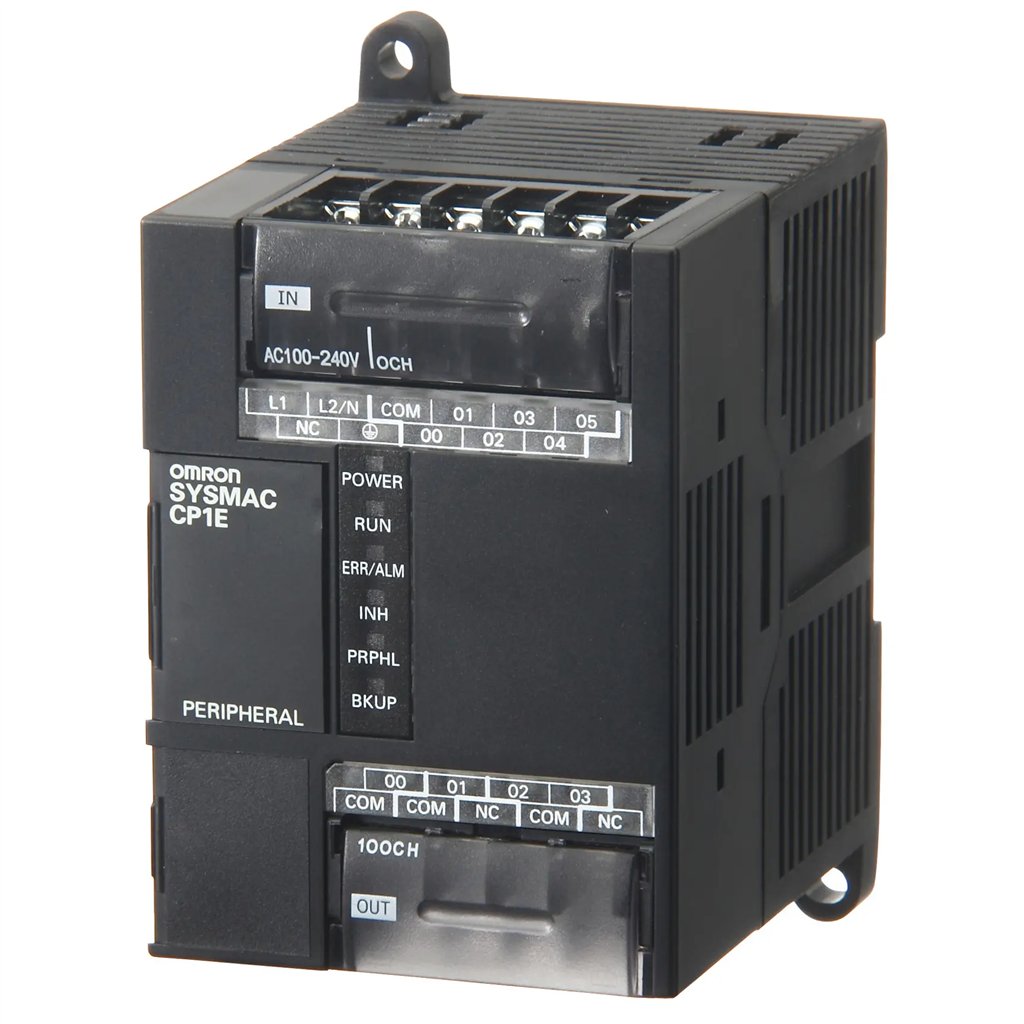

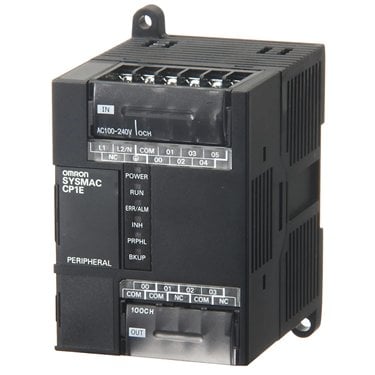

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

This product can only be returned in case of defects covered by the warranty.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Request your tailored technical service

Rely on our expert technical team for a range of personalized services: repair, programming, maintenance, and much more.

Product information

Technical specifications

Width
66 mm
Height
90 mm
Depth
85 mm
Number of digital inputs
6
Number of digital outputs
4
Number of HW-interfaces USB
1
Model
Compact
SIL according to IEC 61508
None
Voltage type (supply voltage)
DC
Rail mounting possible
TRUE
Performance level according to EN ISO 13849-1
Level a
Explosion safety category for gas
None
Explosion safety category for dust
None
Supply voltage DC
20.4;26.4 V
Supply voltage AC 50 Hz
0;0 V
Supply voltage AC 60 Hz
0;0 V
Type of memory
FLASH
Memory size
16 kByte
Processing time (1K, binary operation)
1.1 ms
Max. number of time switches
255
Wall mounting/direct mounting
TRUE
