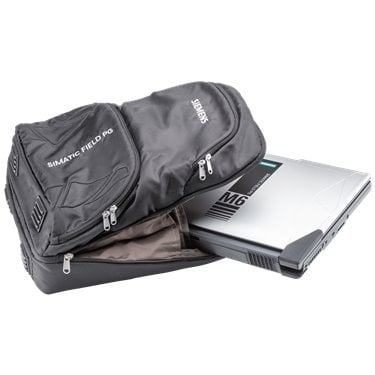

6ES7718-1BC07-0AC1 Siemens

<table class="TEPreviewTable" style="width:100%;"> <colgroup> <col width="25%" /> <col width="20%" /> <col width="55%" /> </colgroup> <tbody> <tr class="ptr"> <td class="cb TECellHeadTransp TENoBorder" colspan="2" style="border-left-style:none;text-align:center;"> <a href="" target="_blank" rel="noreferrer noopener"> <img src="https://www.automation.siemens.com/bilddb/interfaces/InterfaceImageDB.asmx/GetImageVariantByMLFB?interfaceuserid=TED&amp;objecttype=4,70&amp;imagevariantid=16,19,9&amp;articlenumber=6ES7718.....0...&amp;lang=en,XX" style="border:none;max-width:200px;vertical-align:middle;" border="0" alt="GetImageVariantByMLFB?interfaceuserid=TED&amp;objecttype=4,70&amp;imagevariantid=16,19,9&amp;articlenumber=6ES7718.....0...&amp;lang=en,XX" /> </a> </td> <td class="cb TECellHeadTransp TENoBorder">SIMATIC Field PG M6</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">General information</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Design of the programming device</td> <td class="cb TEValueCell hlc">Notebook</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Display</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Design of display</td> <td class="cb TEValueCell hlc">15.6" full HD display in 16:9 format</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Resolution (pixels)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Horizontal image resolution</td> <td class="cb TEValueCell hlc">1 920 pixel</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Vertical image resolution</td> <td class="cb TEValueCell hlc">1 080 pixel</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">General features</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Non-reflecting</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Luminance</td> <td class="cb TEValueCell hlc">300 cd/m²</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Backlighting</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Type of backlighting</td> <td class="cb TEValueCell hlc">LED</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Control elements</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Keyboard fonts</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Design</td> <td class="cb TEValueCell hlc">QWERTZ/QWERTY or AZERTY (French); 87 keys</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Touch operation</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Integrated touch pad</td> <td class="cb TEValueCell hlc">Yes; Clickpad</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Supply voltage</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Design of the power supply</td> <td class="cb TEValueCell hlc">External wide-range power supply; 3-pole</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">permissible range, lower limit (AC)</td> <td class="cb TEValueCell hlc">100 V; ±10 %, sinusoidal</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">permissible range, upper limit (AC)</td> <td class="cb TEValueCell hlc">240 V; ±10 %, sinusoidal</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Line frequency</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● permissible range, lower limit</td> <td class="cb TEValueCell hlc">47 Hz</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● permissible range, upper limit</td> <td class="cb TEValueCell hlc">63 Hz</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Processor</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Processor type</td> <td class="cb TEValueCell hlc">Intel Core i5-8400H (2.5 to 4.2 GHz, 4 cores and hyper-threading, 8 MB Smart Cache) or i7-8850H (2.6 to 4.3 GHz 6 cores and hyper-threading, 9 MB Smart Cache)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Chipset</td> <td class="cb TEValueCell hlc">Intel CM246</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Hyper-threading</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Turbo Boost Technology 2.0</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Graphic</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Graphics controller</td> <td class="cb TEValueCell hlc">Intel® UHD Graphics 630</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Drives</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">SSD</td> <td class="cb TEValueCell hlc">Yes; Easy to replace</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Memory capacity</td> <td class="cb TEValueCell hlc">256 Gbyte</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">TPM Security Chip</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Memory</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Type of memory</td> <td class="cb TEValueCell hlc">DDR4-SDRAM SO-DIMM</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Work memory</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Number of slots</td> <td class="cb TEValueCell hlc">2</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Accumulator</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Replaceable</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Capacity</td> <td class="cb TEValueCell hlc">8.25 A·h</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Interfaces</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Number of interfaces PROFIBUS DP</td> <td class="cb TEValueCell hlc">1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Number of RS 232 interfaces</td> <td class="cb TEValueCell hlc">1; 25-pin socket</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Number of USB interfaces</td> <td class="cb TEValueCell hlc">4</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Type A</td> <td class="cb TEValueCell hlc">3</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Type C</td> <td class="cb TEValueCell hlc">1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Number of chip-card readers</td> <td class="cb TEValueCell hlc">1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Bluetooth radio standard</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Multimedia card/SD card slot</td> <td class="cb TEValueCell hlc">2 in 1 (SDHC UHS-II, MMC)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Card reader for SIMATIC memory cards</td> <td class="cb TEValueCell hlc">SIMATIC memory cards (for S7-300/400), SMC (for S7-1x00), SIMATIC micro memory card (for S7-300/C7/ET 200) - including programming interfaces</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Universal Audio Jack</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Video interfaces</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● analog video signal (VGA)</td> <td class="cb TEValueCell hlc">Yes; via adapter from DVI to VGA</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● DVI-I</td> <td class="cb TEValueCell hlc">Yes; 1x</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● DisplayPort</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Industrial Ethernet</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Industrial Ethernet interface</td> <td class="cb TEValueCell hlc">2x Ethernet (RJ45)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:50px;">— 100 Mbps</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:50px;">— 1000 Mbps</td> <td class="cb TEValueCell hlc">Yes; Gigabit Ethernet; 2x RJ45 with 2 independent MAC/IP addresses</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Wake on LAN</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● IAMT (Intel Active Management Technology)</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">WLAN</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Type</td> <td class="cb TEValueCell hlc">802.11ac</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Interrupts/diagnostics/status information</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">LED status display</td> <td class="cb TEValueCell hlc">Battery status, device status, access to HDD/DVD, access to SD/MMC, MPI/DP, S5 and S7 modules / Card Reader (except Smart Card Reader), Num Lock, Caps Lock, WLAN active</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">EMC</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Interference immunity against discharge of static electricity</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Interference immunity to cable-borne interference</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Interference immunity on supply cables</td> <td class="cb TEValueCell hlc">±2 kV (according to IEC 61000-4-4, burst); ±1 kV (according to IEC 61000-4-5, surge pulse/line to line); ±2 kV (according to IEC 61000-4-5, surge pulse/line to ground)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Interference immunity on signal cables</td> <td class="cb TEValueCell hlc">±1 kV (according to IEC 61000-4-4, burst, length &lt; 30 m); ±2 kV (according to IEC 61000-4-4, burst, length &gt; 30 m); ±2 kV (according to IEC 61000-4-5, surge sym./line to ground, length &gt; 30 m)</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Standards, approvals, certificates</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">CE mark</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">CSA approval</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">UL approval</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">DIN/ISO 9001</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Ambient conditions</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Ambient temperature during operation</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● min.</td> <td class="cb TEValueCell hlc">5 °C; Max. 10 °C/h (no condensation)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● max.</td> <td class="cb TEValueCell hlc">40 °C; Max. 10 °C/h (no condensation)</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Ambient temperature during storage/transportation</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● min.</td> <td class="cb TEValueCell hlc">-20 °C; Max. 20 °C/h (no condensation)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● max.</td> <td class="cb TEValueCell hlc">60 °C; Max. 20 °C/h (no condensation)</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Relative humidity</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Operation, min.</td> <td class="cb TEValueCell hlc">5 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Operation, max.</td> <td class="cb TEValueCell hlc">85 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Vibrations</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Operation, tested according to IEC 60068-2-6</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Shock testing</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● tested according to IEC 60068-2-27</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Operating systems</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Local language of operating system</td> <td class="cb TEValueCell hlc">Multi-Language User Interface (MUI): 6 languages (English, German, French, Spanish, Italian, Chinese)</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">pre-installed operating system</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Windows 10</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Software</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Preinstalled</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● STEP 7 Professional (TIA Portal)</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● STEP 7</td> <td class="cb TEValueCell hlc">Yes; Professional 2017 SR1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● WinCC flexible Advanced 2008</td> <td class="cb TEValueCell hlc">Yes; Software version: SP5</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● WinCC Advanced (TIA Portal)</td> <td class="cb TEValueCell hlc">Yes; Software version: V15.1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● STEP 5</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Mechanics/material</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Material of housing</td> <td class="cb TEValueCell hlc">metal</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Handle</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Socket for Kensington lock</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">rubber corner guards</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Dimensions</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Width</td> <td class="cb TEValueCell hlc">385 mm</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Height</td> <td class="cb TEValueCell hlc">53 mm</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Depth</td> <td class="cb TEValueCell hlc">275 mm</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Weights</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Weight, approx.</td> <td class="cb TEValueCell hlc">3.4 kg</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Scope of supply</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Accumulator</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Power supply</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Backpack</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">SIMATIC Software</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Recovery media</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Other</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">free hotline</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Note:</td> <td class="cb TEValueCell hlc">Made in Germany: development and production in Germany</td> </tr> <tr class="ptr"> <td class="TEFooterLastModified" colspan="2" style="font-weight:bold;">last modified:</td> <td class="TEFooterLastModified" colspan="1">1/16/2021</td> </tr> </tbody> </table> <table class="TEPreviewTable" style="width:100%;"> <colgroup> <col width="25%" /> <col width="20%" /> <col width="55%" /> </colgroup> <tbody> <tr class="ptr"> <td class="cb TECellHeadTransp TENoBorder" colspan="2" style="border-left-style:none;text-align:center;"> <a href="" target="_blank" rel="noreferrer noopener"> <img src="https://www.automation.siemens.com/bilddb/interfaces/InterfaceImageDB.asmx/GetImageVariantByMLFB?interfaceuserid=TED&amp;objecttype=4,70&amp;imagevariantid=16,19,9&amp;articlenumber=6ES7718.....0...&amp;lang=en,XX" style="border:none;max-width:200px;vertical-align:middle;" border="0" alt="GetImageVariantByMLFB?interfaceuserid=TED&amp;objecttype=4,70&amp;imagevariantid=16,19,9&amp;articlenumber=6ES7718.....0...&amp;lang=en,XX" /> </a> </td> <td class="cb TECellHeadTransp TENoBorder">SIMATIC Field PG M6</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">General information</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Design of the programming device</td> <td class="cb TEValueCell hlc">Notebook</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Display</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Design of display</td> <td class="cb TEValueCell hlc">15.6" full HD display in 16:9 format</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Resolution (pixels)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Horizontal image resolution</td> <td class="cb TEValueCell hlc">1 920 pixel</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Vertical image resolution</td> <td class="cb TEValueCell hlc">1 080 pixel</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">General features</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Non-reflecting</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Luminance</td> <td class="cb TEValueCell hlc">300 cd/m²</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Backlighting</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Type of backlighting</td> <td class="cb TEValueCell hlc">LED</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Control elements</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Keyboard fonts</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Design</td> <td class="cb TEValueCell hlc">QWERTZ/QWERTY or AZERTY (French); 87 keys</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Touch operation</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Integrated touch pad</td> <td class="cb TEValueCell hlc">Yes; Clickpad</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Supply voltage</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Design of the power supply</td> <td class="cb TEValueCell hlc">External wide-range power supply; 3-pole</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">permissible range, lower limit (AC)</td> <td class="cb TEValueCell hlc">100 V; ±10 %, sinusoidal</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">permissible range, upper limit (AC)</td> <td class="cb TEValueCell hlc">240 V; ±10 %, sinusoidal</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Line frequency</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● permissible range, lower limit</td> <td class="cb TEValueCell hlc">47 Hz</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● permissible range, upper limit</td> <td class="cb TEValueCell hlc">63 Hz</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Processor</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Processor type</td> <td class="cb TEValueCell hlc">Intel Core i5-8400H (2.5 to 4.2 GHz, 4 cores and hyper-threading, 8 MB Smart Cache) or i7-8850H (2.6 to 4.3 GHz 6 cores and hyper-threading, 9 MB Smart Cache)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Chipset</td> <td class="cb TEValueCell hlc">Intel CM246</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Hyper-threading</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Turbo Boost Technology 2.0</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Graphic</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Graphics controller</td> <td class="cb TEValueCell hlc">Intel® UHD Graphics 630</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Drives</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">SSD</td> <td class="cb TEValueCell hlc">Yes; Easy to replace</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Memory capacity</td> <td class="cb TEValueCell hlc">256 Gbyte</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">TPM Security Chip</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Memory</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Type of memory</td> <td class="cb TEValueCell hlc">DDR4-SDRAM SO-DIMM</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Work memory</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Number of slots</td> <td class="cb TEValueCell hlc">2</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Accumulator</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Replaceable</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Capacity</td> <td class="cb TEValueCell hlc">8.25 A·h</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Interfaces</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Number of interfaces PROFIBUS DP</td> <td class="cb TEValueCell hlc">1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Number of RS 232 interfaces</td> <td class="cb TEValueCell hlc">1; 25-pin socket</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Number of USB interfaces</td> <td class="cb TEValueCell hlc">4</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Type A</td> <td class="cb TEValueCell hlc">3</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Type C</td> <td class="cb TEValueCell hlc">1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Number of chip-card readers</td> <td class="cb TEValueCell hlc">1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Bluetooth radio standard</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Multimedia card/SD card slot</td> <td class="cb TEValueCell hlc">2 in 1 (SDHC UHS-II, MMC)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Card reader for SIMATIC memory cards</td> <td class="cb TEValueCell hlc">SIMATIC memory cards (for S7-300/400), SMC (for S7-1x00), SIMATIC micro memory card (for S7-300/C7/ET 200) - including programming interfaces</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Universal Audio Jack</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Video interfaces</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● analog video signal (VGA)</td> <td class="cb TEValueCell hlc">Yes; via adapter from DVI to VGA</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● DVI-I</td> <td class="cb TEValueCell hlc">Yes; 1x</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● DisplayPort</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Industrial Ethernet</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Industrial Ethernet interface</td> <td class="cb TEValueCell hlc">2x Ethernet (RJ45)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:50px;">— 100 Mbps</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:50px;">— 1000 Mbps</td> <td class="cb TEValueCell hlc">Yes; Gigabit Ethernet; 2x RJ45 with 2 independent MAC/IP addresses</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Wake on LAN</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● IAMT (Intel Active Management Technology)</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">WLAN</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Type</td> <td class="cb TEValueCell hlc">802.11ac</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Interrupts/diagnostics/status information</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">LED status display</td> <td class="cb TEValueCell hlc">Battery status, device status, access to HDD/DVD, access to SD/MMC, MPI/DP, S5 and S7 modules / Card Reader (except Smart Card Reader), Num Lock, Caps Lock, WLAN active</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">EMC</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Interference immunity against discharge of static electricity</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Interference immunity to cable-borne interference</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Interference immunity on supply cables</td> <td class="cb TEValueCell hlc">±2 kV (according to IEC 61000-4-4, burst); ±1 kV (according to IEC 61000-4-5, surge pulse/line to line); ±2 kV (according to IEC 61000-4-5, surge pulse/line to ground)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Interference immunity on signal cables</td> <td class="cb TEValueCell hlc">±1 kV (according to IEC 61000-4-4, burst, length &lt; 30 m); ±2 kV (according to IEC 61000-4-4, burst, length &gt; 30 m); ±2 kV (according to IEC 61000-4-5, surge sym./line to ground, length &gt; 30 m)</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Standards, approvals, certificates</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">CE mark</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">CSA approval</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">UL approval</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">DIN/ISO 9001</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Ambient conditions</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Ambient temperature during operation</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● min.</td> <td class="cb TEValueCell hlc">5 °C; Max. 10 °C/h (no condensation)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● max.</td> <td class="cb TEValueCell hlc">40 °C; Max. 10 °C/h (no condensation)</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Ambient temperature during storage/transportation</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● min.</td> <td class="cb TEValueCell hlc">-20 °C; Max. 20 °C/h (no condensation)</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● max.</td> <td class="cb TEValueCell hlc">60 °C; Max. 20 °C/h (no condensation)</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Relative humidity</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Operation, min.</td> <td class="cb TEValueCell hlc">5 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Operation, max.</td> <td class="cb TEValueCell hlc">85 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Vibrations</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Operation, tested according to IEC 60068-2-6</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Shock testing</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● tested according to IEC 60068-2-27</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Operating systems</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Local language of operating system</td> <td class="cb TEValueCell hlc">Multi-Language User Interface (MUI): 6 languages (English, German, French, Spanish, Italian, Chinese)</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">pre-installed operating system</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● Windows 10</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Software</td> </tr> <tr class="ptr"> <td class="cb fc" colspan="3" style="padding-left:10px;background-color:#AFB4BE;">Preinstalled</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● STEP 7 Professional (TIA Portal)</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● STEP 7</td> <td class="cb TEValueCell hlc">Yes; Professional 2017 SR1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● WinCC flexible Advanced 2008</td> <td class="cb TEValueCell hlc">Yes; Software version: SP5</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● WinCC Advanced (TIA Portal)</td> <td class="cb TEValueCell hlc">Yes; Software version: V15.1</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:30px;">● STEP 5</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Mechanics/material</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Material of housing</td> <td class="cb TEValueCell hlc">metal</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Handle</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Socket for Kensington lock</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">rubber corner guards</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Dimensions</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Width</td> <td class="cb TEValueCell hlc">385 mm</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Height</td> <td class="cb TEValueCell hlc">53 mm</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Depth</td> <td class="cb TEValueCell hlc">275 mm</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Weights</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Weight, approx.</td> <td class="cb TEValueCell hlc">3.4 kg</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Scope of supply</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Accumulator</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Power supply</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Backpack</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">SIMATIC Software</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Recovery media</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb hc" colspan="3">Other</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">free hotline</td> <td class="cb TEValueCell hlc">Yes</td> </tr> <tr class="ptr"> <td class="cb fc hlc" colspan="2" style="padding-left:10px;">Note:</td> <td class="cb TEValueCell hlc">Made in Germany: development and production in Germany</td> </tr> <tr class="ptr"> <td class="TEFooterLastModified" colspan="2" style="font-weight:bold;">last modified:</td> <td class="TEFooterLastModified" colspan="1">1/16/2021</td> </tr> </tbody> </table>
