V3-4A-E2-5M-PUR PEPPERL+FUCHS - Part number: 70132535
NFS
Out of Stock - Backorder
To order from manufacturer
USD128.43

Import Taxes Excluded

You must be logged

V3-4A-E2-5M-PUR PEPPERL+FUCHS - Part number: 70132535

PEPPERL+FUCHS

compare
V3-4A-E2-5M-PUR PEPPERL+FUCHS - Part number: 70132535

Splitter box M8 V3-4A-E2-5M-PUR V3-4A-E2-5M-PUR Flat housing LED indicator for module supply and I/O status Degree of protection IP67 Suitable for drag chains and abrasion resistant Splitter box M8 V3-4A-E2-5M-PUR V3-4A-E2-5M-PUR Flat housing LED indicator for module supply and I/O status Degree of protection IP67 Suitable for drag chains and abrasion resistant

MPNs 70132535, PEP70132535, V3-4A-E2-5M-PUR
HS Code 85444200
Weight N/A

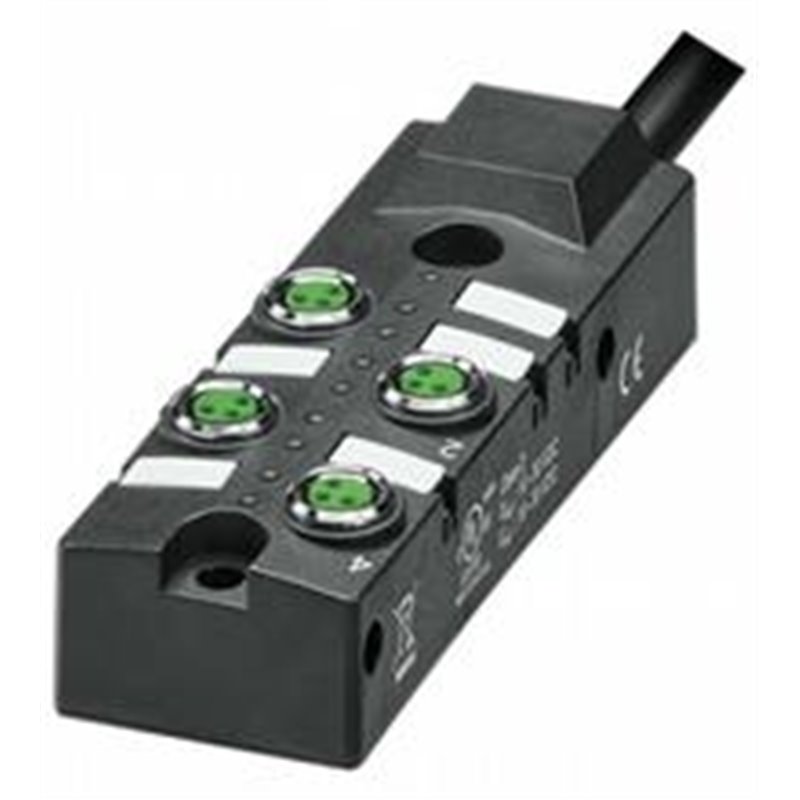

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

NFS Condition NFS
New Factory Sealed - Original
Out of Stock - Backorder
To order from manufacturer
USD128.43

Import Taxes Excluded

You must be logged
Sold by PLC-CITY® and shipped from Italy
We are a Specialist Partner of PEPPERL+FUCHS
To United States starting from USD27.36 by DHL Express Worldwide
Loader...
View all shipping services
Request a quote to know the delivery date

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Datasheet excerpt: Technical data of  V3-4A-E2-5M-PUR Product Description Splitter box 4 x M8 single allocation, with trunk cable General specifications Connector 1 Connectionsocket Construction type4x M8 Lockingscrew connection Number of pins3 CodingA-coded Connector 2 Connectioncable end UL File NumberE223772 Indicators/operating means LED greensupply voltage each module LED yellowI/O status indication Electrical specifications Operating voltage24 V DC, max. 30 V DC Operating current≤ 5 mA per channel indication element Current loading capacity≤ 2 A per channel,≤ 2 A per plug-in station,≤ 6 A total current per splitter box Conformity Degree of protectionEN 60529 Plug connectionconnector M8 x 1 : IEC 61076-2-104 FlammabilityUL 94 Approvals and certificates UL approvalAWM STYLE 20549 (cable) Ambient conditions Ambient temperature Plug connector-25 ... 80 °C (-13 ... 176 °F) Cable, fixed-40 ... 90 °C (-40 ... 194 °F) Cable, flexing-5 ... 80 °C (23 ... 176 °F) Mechanical specifications Plug connector Tightening torque0.2 Nm Mating cyclesmin. 100 Degree of protectionIP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6.8 mm Bending radius> 10 x cable diameter, moving > 7.5 x cable diameter, fixed Sheath colorblack (similar to RAL 9005) CoresSignal wires (4): 4 x 0.34 mm2 Supply line (1, 3): 2 x 0.75 mm2 Cores colorCore 1/4 (A): white Core 2/4 (A): green Core 3/4 (A): yellow Core 4/4 (A): grey Core 1 ... 4/1 (+24 V): brownCore 1 ... 4/3 (0 V): blue Core constructionSignal line (4): 19 x 0.15 mm Supply line (1, 3): 42 x 0.15 mm Length5 m Cable codeLi YY 11Y-HF Drag chain suitability Drag chain cyclesmin. 1500000 Motion velocitymax. 2 m/s Traverse distance2 m Material LABS freeyes Plug connector Screw connectionCu alloy , nickel-plated BodyPBT, black SealFKM Contact surfaceNi/Au FlammabilityV-0 Cable SheathingPUR Core insulationPVC Chemical resistancegood General information NoteDuring installation of cables respect the maximum allowed bending radius. Excessive bending forces endanger the degree of protection.Secure the connector from mechanical forces, for example by means of cable ties.Close unused plug-in slots prior to commissioning. Respective sealing elements you will find under "accessories". Classifications SystemClasscode ECLASS 11.027440108 ECLASS 10.0.127440108 ECLASS 9.027440108 ECLASS 8.027279219 ECLASS 5.127279201 ETIM 8.0EC002585 ETIM 7.0EC002585 ETIM 6.0EC002585 ETIM 5.0EC002585 UNSPSC 12.131261501 Datasheet excerpt: Technical data of  V3-4A-E2-5M-PUR Product Description Splitter box 4 x M8 single allocation, with trunk cable General specifications Connector 1 Connectionsocket Construction type4x M8 Lockingscrew connection Number of pins3 CodingA-coded Connector 2 Connectioncable end UL File NumberE223772 Indicators/operating means LED greensupply voltage each module LED yellowI/O status indication Electrical specifications Operating voltage24 V DC, max. 30 V DC Operating current≤ 5 mA per channel indication element Current loading capacity≤ 2 A per channel,≤ 2 A per plug-in station,≤ 6 A total current per splitter box Conformity Degree of protectionEN 60529 Plug connectionconnector M8 x 1 : IEC 61076-2-104 FlammabilityUL 94 Approvals and certificates UL approvalAWM STYLE 20549 (cable) Ambient conditions Ambient temperature Plug connector-25 ... 80 °C (-13 ... 176 °F) Cable, fixed-40 ... 90 °C (-40 ... 194 °F) Cable, flexing-5 ... 80 °C (23 ... 176 °F) Mechanical specifications Plug connector Tightening torque0.2 Nm Mating cyclesmin. 100 Degree of protectionIP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6.8 mm Bending radius> 10 x cable diameter, moving > 7.5 x cable diameter, fixed Sheath colorblack (similar to RAL 9005) CoresSignal wires (4): 4 x 0.34 mm2 Supply line (1, 3): 2 x 0.75 mm2 Cores colorCore 1/4 (A): white Core 2/4 (A): green Core 3/4 (A): yellow Core 4/4 (A): grey Core 1 ... 4/1 (+24 V): brownCore 1 ... 4/3 (0 V): blue Core constructionSignal line (4): 19 x 0.15 mm Supply line (1, 3): 42 x 0.15 mm Length5 m Cable codeLi YY 11Y-HF Drag chain suitability Drag chain cyclesmin. 1500000 Motion velocitymax. 2 m/s Traverse distance2 m Material LABS freeyes Plug connector Screw connectionCu alloy , nickel-plated BodyPBT, black SealFKM Contact surfaceNi/Au FlammabilityV-0 Cable SheathingPUR Core insulationPVC Chemical resistancegood General information NoteDuring installation of cables respect the maximum allowed bending radius. Excessive bending forces endanger the degree of protection.Secure the connector from mechanical forces, for example by means of cable ties.Close unused plug-in slots prior to commissioning. Respective sealing elements you will find under "accessories". Classifications SystemClasscode ECLASS 11.027440108 ECLASS 10.0.127440108 ECLASS 9.027440108 ECLASS 8.027279219 ECLASS 5.127279201 ETIM 8.0EC002585 ETIM 7.0EC002585 ETIM 6.0EC002585 ETIM 5.0EC002585 UNSPSC 12.131261501
