RL31-8-H-800-IR/73c/136 PEPPERL+FUCHS - Part number: 277837

Background suppression sensor RL31-8-H-800-IR/73c/136 RL31-8-H-800-IR/73c/136 Cost-optimized series for standard tasks Large construction with small housing High-visibility indicator LEDs Low sensitivity to target color Background suppression sensor RL31-8-H-800-IR/73c/136 RL31-8-H-800-IR/73c/136 Cost-optimized series for standard tasks Large construction with small housing High-visibility indicator LEDs Low sensitivity to target color

MPNs 277837, PEP277837, RL31-8-H-800-IR/73c/136
HS Code 85365090
Weight N/A

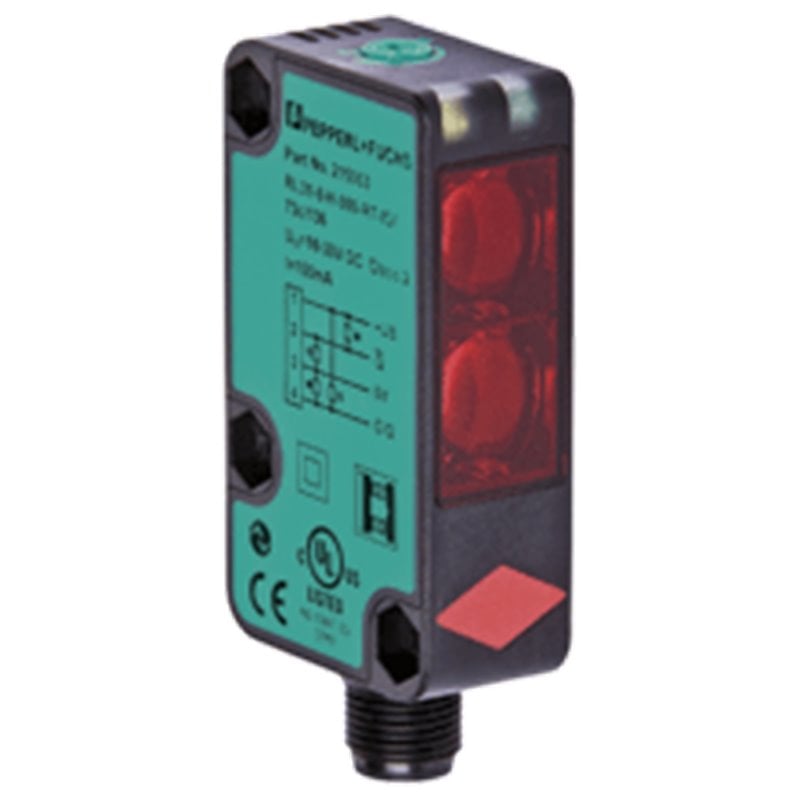

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Datasheet excerpt: Technical data of  RL31-8-H-800-IR/73c/136 Product Description Triangulation sensor with background suppression for standard applications, large housing design, 800 mm adjustable detection range, infrared, dark on, push-pull output, M12 plug General specifications Detection range50 ... 800 mm Detection range min.50 ... 100 mm Detection range max.50 ... 800 mm Adjustment range100 ... 800 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated infrared light Black/White difference (6 %/90 %)< 5 % Diameter of the light spot30 mm at a distance of 800 mm Opening angle2.5 ° Ambient light limit20000 Lux Functional safety related parameters MTTFd580 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (0.8 Hz) , short-circuit : LED green flashing (4 Hz) Function indicatorLED yellow ; ON: object inside the sensing range ; OFF: object outside the sensing range Control elementsSensing range adjuster Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentmax. 25 mA at 24 V supply voltage Output Switching typedark on Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2 V DC Switching frequency200 Hz Response time2.5 ms Conformity Product standardEN 60947-5-2 Approvals and certificates Protection classII , rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) Ambient conditions Ambient temperature-30 ... 55 °C (-22 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width18 mm Housing height62 mm Housing depth35 mm Degree of protectionIP67 Connection4-pin, M12 x 1 connector Material HousingPolycarbonate Optical facePMMA Mass25 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RL31-8-H-800-IR/73c/136 Product Description Triangulation sensor with background suppression for standard applications, large housing design, 800 mm adjustable detection range, infrared, dark on, push-pull output, M12 plug General specifications Detection range50 ... 800 mm Detection range min.50 ... 100 mm Detection range max.50 ... 800 mm Adjustment range100 ... 800 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated infrared light Black/White difference (6 %/90 %)< 5 % Diameter of the light spot30 mm at a distance of 800 mm Opening angle2.5 ° Ambient light limit20000 Lux Functional safety related parameters MTTFd580 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (0.8 Hz) , short-circuit : LED green flashing (4 Hz) Function indicatorLED yellow ; ON: object inside the sensing range ; OFF: object outside the sensing range Control elementsSensing range adjuster Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentmax. 25 mA at 24 V supply voltage Output Switching typedark on Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2 V DC Switching frequency200 Hz Response time2.5 ms Conformity Product standardEN 60947-5-2 Approvals and certificates Protection classII , rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) Ambient conditions Ambient temperature-30 ... 55 °C (-22 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width18 mm Housing height62 mm Housing depth35 mm Degree of protectionIP67 Connection4-pin, M12 x 1 connector Material HousingPolycarbonate Optical facePMMA Mass25 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528
