BNS 819-FR-60-101-FE BALLUFF - Part Number: BNS0016
Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

BNS 819-FR-60-101-FE BALLUFF - Part Number: BNS0016

BALLUFF

compare
BNS 819-FR-60-101-FE BALLUFF - Part Number: BNS0016
BNS 819-FR-60-101-FE BALLUFF - Part Number: BNS0016

Mechanical limit switch with 1 mechanical switch + roller plunger + LED function signalling (90-250V) - Balluff (F 60 series) - model BNS 819-FR-60-101-FE - Pre-equipped with a wiring chamber with screw-clamp term. and M16 cable entry - rated for (switch 1; AC) 250V - 1 x 1NO+1NC (snap-action contacts; DPST; self-cleaning) - Rectangular body with 6.6mm through-holes - Rated for +23...+185°F / -5...+85°C ambient - IP67 - Anodized Aluminium housing - 5Hz max. switching frequency (switch 1) - Horizontal or vertical mounting - IEC60947-5-1 compliant - DIN 43693 compliant - cam approach direction perpendicular/transverse or lateral - equivalent to BNS819FR60101FE Mechanical limit switch with 1 mechanical switch + roller plunger + LED function signalling (90-250V) - Balluff (F 60 series) - model BNS 819-FR-60-101-FE - Pre-equipped with a wiring chamber with screw-clamp term. and M16 cable entry - rated for (switch 1; AC) 250V - 1 x 1NO+1NC (snap-action contacts; DPST; self-cleaning) - Rectangular body with 6.6mm through-holes - Rated for +23...+185°F / -5...+85°C ambient - IP67 - Anodized Aluminium housing - 5Hz max. switching frequency (switch 1) - Horizontal or vertical mounting - IEC60947-5-1 compliant - DIN 43693 compliant - cam approach direction perpendicular/transverse or lateral - equivalent to BNS819FR60101FE

MPNs BNS0016, BAUBNS0016, BNS 819-FR-60-101-FE
HS Code 8536509055
Country of origin China
Weight N/A
Download Datasheet

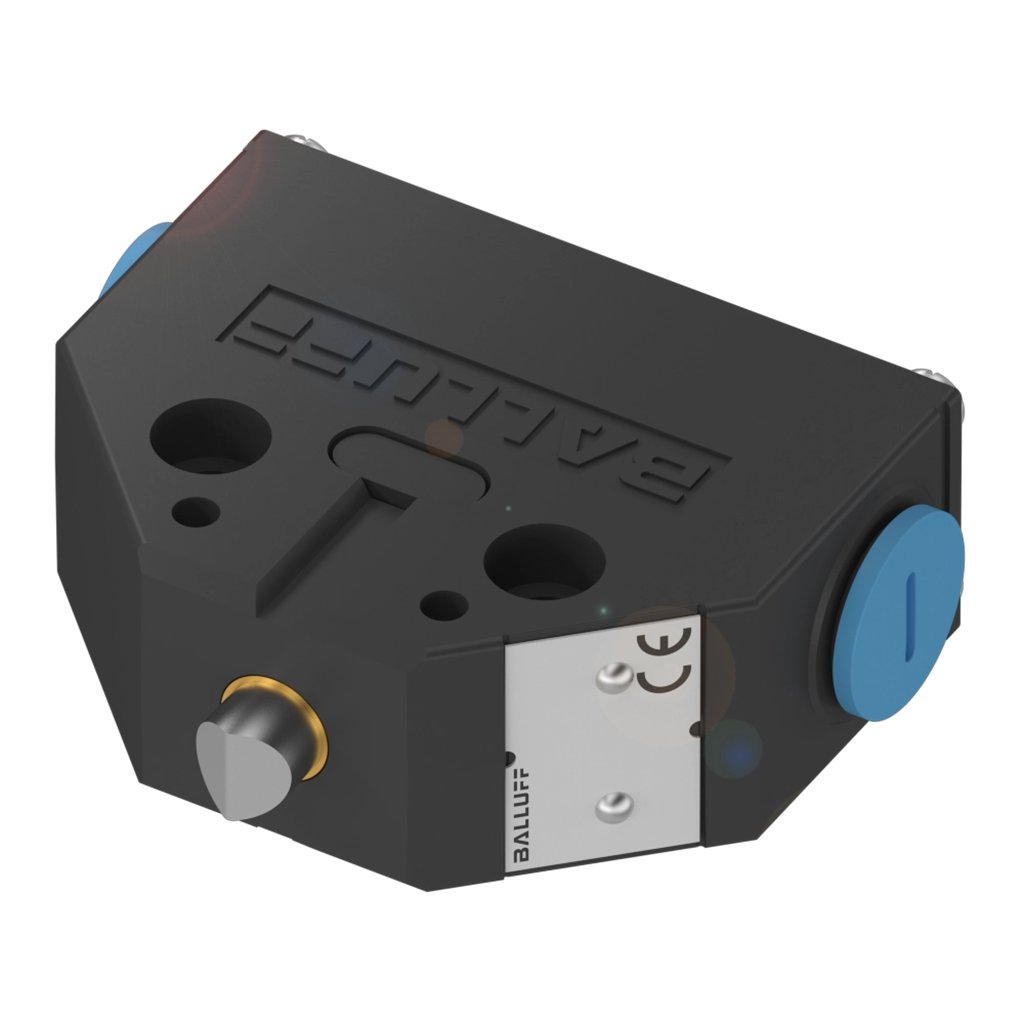

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Mechanical single position limit switches benefits - Long service life - Robust housing for extreme applications - Three model series - Optional function indicator - 2-chamber system with IP67 degree of protection (wear-free membrane with hermetic separation of the plunger mechanism and the switch interior) - Maintenance-free and self-lubricating ram guide with plain bearing bush Mechanical single position limit switches benefits - Long service life - Robust housing for extreme applications - Three model series - Optional function indicator - 2-chamber system with IP67 degree of protection (wear-free membrane with hermetic separation of the plunger mechanism and the switch interior) - Maintenance-free and self-lubricating ram guide with plain bearing bush
