BNS 819-D04-D12-100-10-FD-S4L-I BALLUFF - Part Number: BNS04RA
NFS
Out of Stock - Backorder
To order from manufacturer
USD570.81

Import Taxes Excluded

You must be logged

BNS 819-D04-D12-100-10-FD-S4L-I BALLUFF - Part Number: BNS04RA

BALLUFF

compare
BNS 819-D04-D12-100-10-FD-S4L-I BALLUFF - Part Number: BNS04RA
BNS 819-D04-D12-100-10-FD-S4L-I BALLUFF - Part Number: BNS04RA

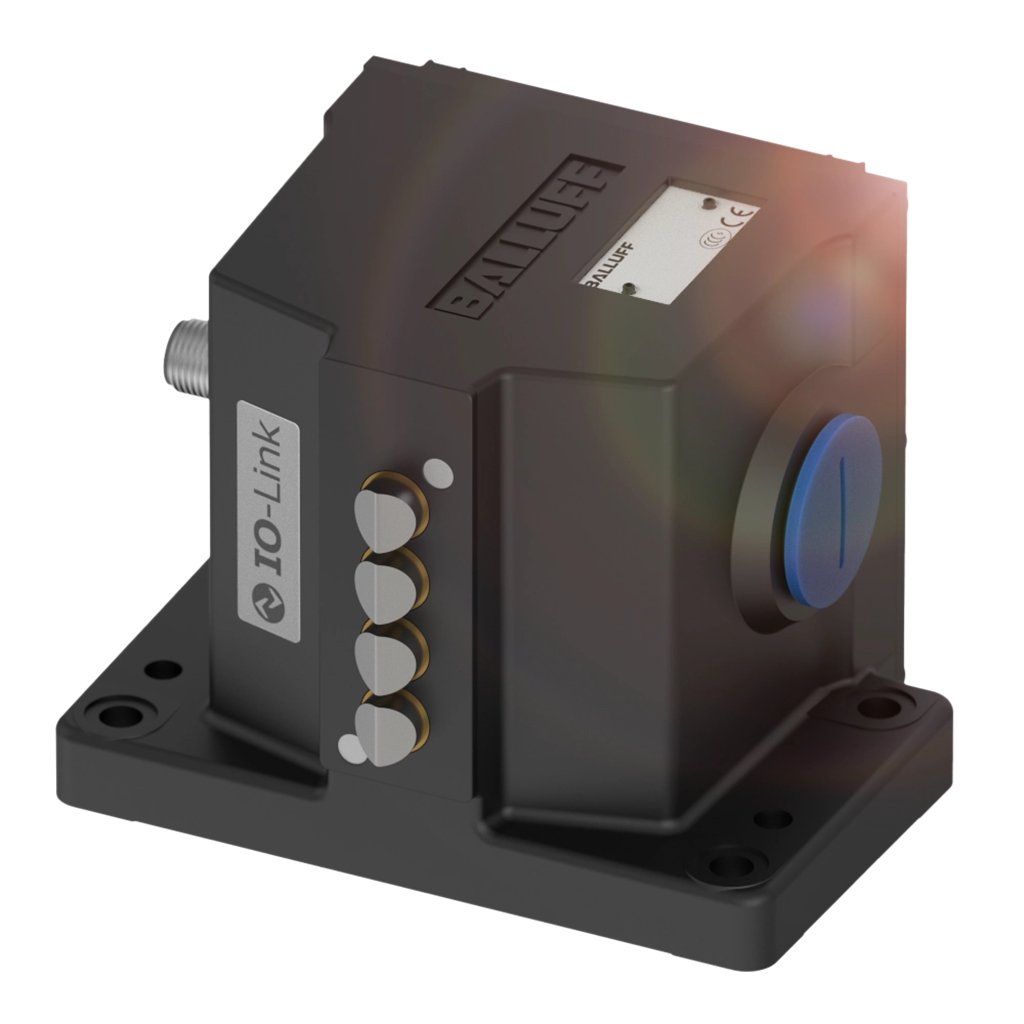

Mechanical multi limit switch with 4 mechanical switches + chisel plungers + LED function signalling (6-60V) - Balluff (100 series) - model BNS 819-D04-D12-100-10-FD-S4L-I - Pre-equipped with a male 4-pin A-coded M12 connector (left side) - 4 x 1NO+1NC (snap-action contacts; DPST; self-cleaning) - Rectangular body with mounting feet - Rated for +23...+185°F / -5...+85°C ambient - IP67 - Anodized Aluminium housing - with 12mm switch spacing - 5Hz max. switching frequency (switch 1-4) - Vertical mounting - with IO-Link communication capability - IEC60947-5-1 compliant - DIN 43697 compliant - cam approach direction parallel/longitudinal to mounting surface - groundless connection - equivalent to BNS819D04D1210010FDS4LI Mechanical multi limit switch with 4 mechanical switches + chisel plungers + LED function signalling (6-60V) - Balluff (100 series) - model BNS 819-D04-D12-100-10-FD-S4L-I - Pre-equipped with a male 4-pin A-coded M12 connector (left side) - 4 x 1NO+1NC (snap-action contacts; DPST; self-cleaning) - Rectangular body with mounting feet - Rated for +23...+185°F / -5...+85°C ambient - IP67 - Anodized Aluminium housing - with 12mm switch spacing - 5Hz max. switching frequency (switch 1-4) - Vertical mounting - with IO-Link communication capability - IEC60947-5-1 compliant - DIN 43697 compliant - cam approach direction parallel/longitudinal to mounting surface - groundless connection - equivalent to BNS819D04D1210010FDS4LI

MPNs BNS04RA, BAUBNS04RA, BNS 819-D04-D12-100-10-FD-S4L-I
HS Code 8536509055
Country of origin Hungary
Weight N/A
Download Datasheet
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

NFS Condition NFS
New Factory Sealed - Original
Out of Stock - Backorder
To order from manufacturer
USD570.81

Import Taxes Excluded

You must be logged
Sold by PLC-CITY® and shipped from Italy
Free express shipping to United States
Loader...
View all shipping services
Request a quote to know the delivery date

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Request your tailored technical service

Rely on our expert technical team for a range of personalized services: repair, programming, maintenance, and much more.

Product information

Description

Mechanical multiple position limit switches benefits - Long service life - Robust housing for extreme applications - IO-Link adaptable - Six model series - Up to 16 interfaces depending on the model series - Function indicator optional - 2-chamber system with IP67 degree of protection (wear-free membrane with hermetic separation of the plunger mechanism and the switch interior) - Maintenance-free and self-lubricating ram guide with plain bearing bush Mechanical multiple position limit switches benefits - Long service life - Robust housing for extreme applications - IO-Link adaptable - Six model series - Up to 16 interfaces depending on the model series - Function indicator optional - 2-chamber system with IP67 degree of protection (wear-free membrane with hermetic separation of the plunger mechanism and the switch interior) - Maintenance-free and self-lubricating ram guide with plain bearing bush
