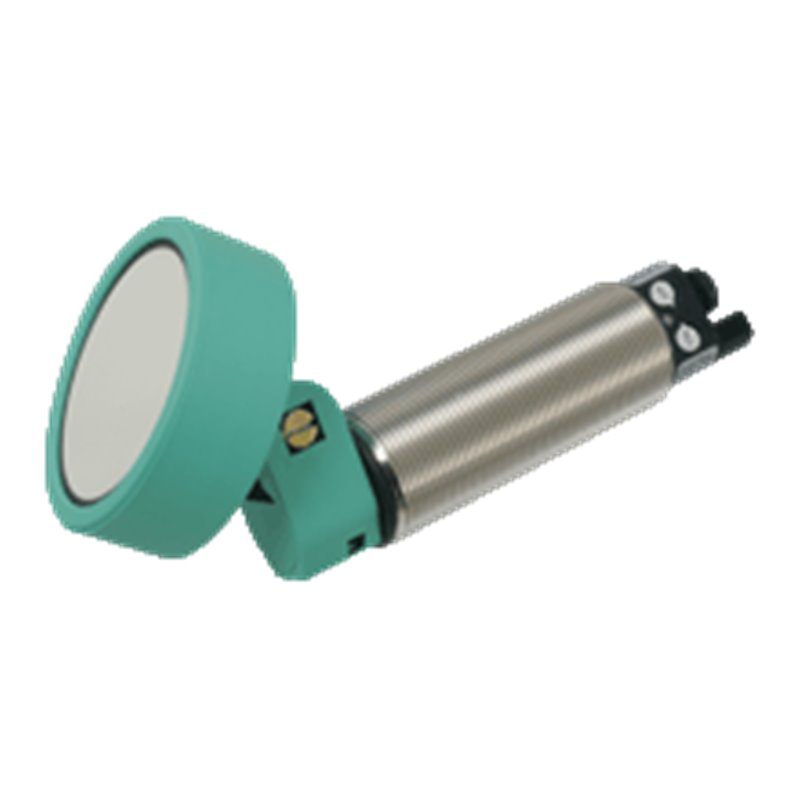

UC6000-30GM70S-IE2R2-V15 PEPPERL+FUCHS - Part number: 238398

Datasheet excerpt: Technical data of  UC6000-30GM70S-IE2R2-V15 Product Description Ultrasonic diffuse sensor with pivoting transducer General specifications Sensing range350 ... 6000 mm Adjustment range400 ... 6000 mm Dead band0 ... 350 mm Standard target plate100 mm x 100 mm Transducer frequency80 kHz Response delay≤ 275 ms Nominal ratings Temperature drift≤ ± 1.5 % of full-scale value Time delay before availability≤ 300 ms Limit data Permissible cable lengthmax. 300 m Indicators/operating means LED yellowswitching state switching output LED green/yellowyellow: object in evaluation range green: Teach-In Potentiometerswitching output adjustable Electrical specifications Rated operating voltage24 V DC Operating voltage20 ... 30 V DC (including ripple) Ripple≤ 10 % No-load supply current≤ 50 mA Interface Interface typeInfrared Modepoint-to-point connection Input/Output Input/output type1 synchronization connection, bidirectional ( Factory setting: synchronized mode ) / Teach-In input 0 Level≤ 3 V 1 Level≥ 15 V Input impedancetyp. 900 Ω Number of sensorsmax. 10 Switching output Output type1 switch output PNP, NO ( NC contact programmable ) Default setting400 ... 6000 mm ( adjustable via potentiometer ) Repeat accuracy± 9 mm Operating current300 mA , short-circuit/overload protected Switching frequency≤ 1 Hz Switching hysteresis60 mm ( programmable ) Voltage drop≤ 3 V Off-state current≤ 10 µA Analog output Output type1 current output 4 ... 20 mA , ascending/descending programmable Default settingrising ramp ; evaluation limit A1: 400 mm ; evaluation limit A2: 6000 mm Load resistor≤ 500 Ω Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 037/2016 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Shock resistance30 g , 11 ms period Vibration resistance10 ... 55 Hz , Amplitude ± 1 mm Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Housing diameter30 mm Degree of protectionIP65 Material Housingbrass, nickel-plated Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Installation positionany position Mass300 g Construction typeCylindrical Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UC6000-30GM70S-IE2R2-V15 Product Description Ultrasonic diffuse sensor with pivoting transducer General specifications Sensing range350 ... 6000 mm Adjustment range400 ... 6000 mm Dead band0 ... 350 mm Standard target plate100 mm x 100 mm Transducer frequency80 kHz Response delay≤ 275 ms Nominal ratings Temperature drift≤ ± 1.5 % of full-scale value Time delay before availability≤ 300 ms Limit data Permissible cable lengthmax. 300 m Indicators/operating means LED yellowswitching state switching output LED green/yellowyellow: object in evaluation range green: Teach-In Potentiometerswitching output adjustable Electrical specifications Rated operating voltage24 V DC Operating voltage20 ... 30 V DC (including ripple) Ripple≤ 10 % No-load supply current≤ 50 mA Interface Interface typeInfrared Modepoint-to-point connection Input/Output Input/output type1 synchronization connection, bidirectional ( Factory setting: synchronized mode ) / Teach-In input 0 Level≤ 3 V 1 Level≥ 15 V Input impedancetyp. 900 Ω Number of sensorsmax. 10 Switching output Output type1 switch output PNP, NO ( NC contact programmable ) Default setting400 ... 6000 mm ( adjustable via potentiometer ) Repeat accuracy± 9 mm Operating current300 mA , short-circuit/overload protected Switching frequency≤ 1 Hz Switching hysteresis60 mm ( programmable ) Voltage drop≤ 3 V Off-state current≤ 10 µA Analog output Output type1 current output 4 ... 20 mA , ascending/descending programmable Default settingrising ramp ; evaluation limit A1: 400 mm ; evaluation limit A2: 6000 mm Load resistor≤ 500 Ω Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 037/2016 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-25 ... 85 °C (-13 ... 185 °F) Shock resistance30 g , 11 ms period Vibration resistance10 ... 55 Hz , Amplitude ± 1 mm Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Housing diameter30 mm Degree of protectionIP65 Material Housingbrass, nickel-plated Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Installation positionany position Mass300 g Construction typeCylindrical Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
