IPH-FP7V4A PEPPERL+FUCHS - Part number: 196214
NFS
Out of Stock - Backorder
To order from manufacturer
USD1,730.37

Import Taxes Excluded

You must be logged

IPH-FP7V4A PEPPERL+FUCHS - Part number: 196214

PEPPERL+FUCHS

compare
IPH-FP7V4A PEPPERL+FUCHS - Part number: 196214

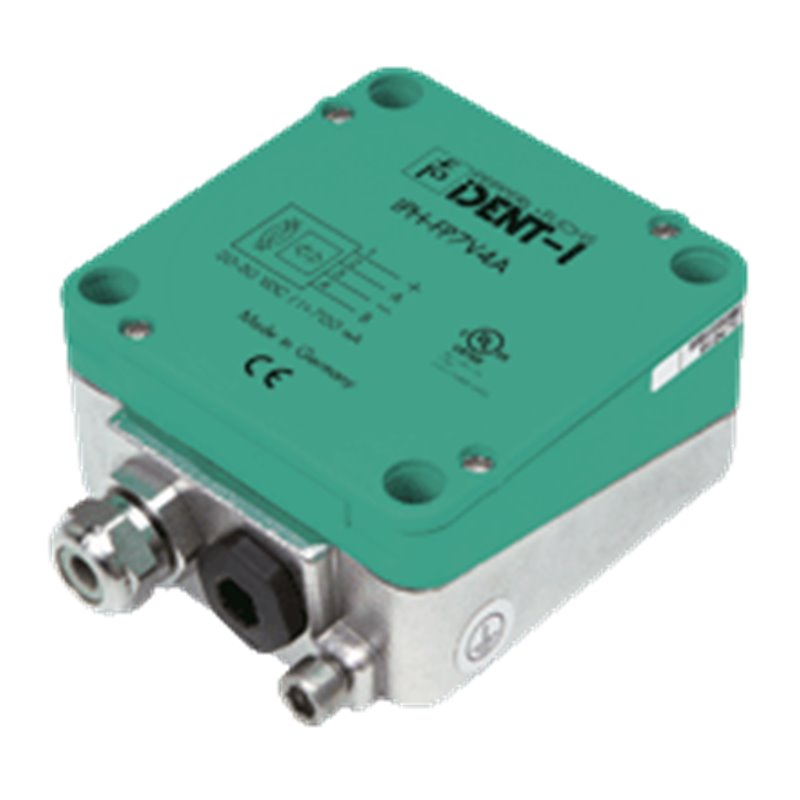

Read/write head IPH-FP7V4A IPH-FP7V4A Dual-LED for function display Stainless steel housing Resistant against cleaning material Connection via terminal compartment Degree of protection IP67 / IP68 / IP69K Read/write head IPH-FP7V4A IPH-FP7V4A Dual-LED for function display Stainless steel housing Resistant against cleaning material Connection via terminal compartment Degree of protection IP67 / IP68 / IP69K

MPNs 196214, PEP196214, IPH-FP7V4A
HS Code 85176200
Weight 0.7 kg
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

NFS Condition NFS
New Factory Sealed - Original
Out of Stock - Backorder
To order from manufacturer
USD1,730.37

Import Taxes Excluded

You must be logged
Sold by PLC-CITY® and shipped from Italy
We are a Specialist Partner of PEPPERL+FUCHS
Free express shipping to United States
Loader...
View all shipping services
Request a quote to know the delivery date

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Request your tailored technical service

Rely on our expert technical team for a range of personalized services: repair, programming, maintenance, and much more.

Product information

Description

Datasheet excerpt: Technical data of  IPH-FP7V4A Product Description LF read/write head for IDENTControl General specifications Operating frequency125 kHz Transfer rate2 kBit/s Sensing range Read distance0 ... 100 mm Write distance0 ... 80 mm Widthmax. 80 mm Operating distancemaximum: 100 mm UL File NumberE87056 Functional safety related parameters MTTFd700 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means LED green/yellowgreen: power ongreen flashing: read/write attempt performedyellow: data carrier detected Electrical specifications Power consumption≤ 1.2 W Supplyfrom the IDENTControl Directive conformity Radio equipment Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364 RoHS Directive 2011/65/EU (RoHS)IEC/EN 63000 Standard conformity Degree of protectionEN 60529 RFIDISO/IEC 18000-2 Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Housing length103 mm Housing width80 mm Housing height40 mm Degree of protectionIP69K Connectionterminal compartment, ≤ 2.5 mm2 conductor csa Material HousingPBT Basestainless steel V4A Encapsulation compoundFermadur Installation Distance between two headsMultiplex on: ≥ 100 mm Multiplex off: ≥ 550 mm Mass700 g Classifications SystemClasscode ECLASS 11.027280401 ECLASS 10.0.127280401 ECLASS 9.027280401 ECLASS 8.027280401 ECLASS 5.127280401 ETIM 8.0EC002998 ETIM 7.0EC002998 ETIM 6.0EC002998 ETIM 5.0EC002998 UNSPSC 12.143211710 Datasheet excerpt: Technical data of  IPH-FP7V4A Product Description LF read/write head for IDENTControl General specifications Operating frequency125 kHz Transfer rate2 kBit/s Sensing range Read distance0 ... 100 mm Write distance0 ... 80 mm Widthmax. 80 mm Operating distancemaximum: 100 mm UL File NumberE87056 Functional safety related parameters MTTFd700 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means LED green/yellowgreen: power ongreen flashing: read/write attempt performedyellow: data carrier detected Electrical specifications Power consumption≤ 1.2 W Supplyfrom the IDENTControl Directive conformity Radio equipment Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364 RoHS Directive 2011/65/EU (RoHS)IEC/EN 63000 Standard conformity Degree of protectionEN 60529 RFIDISO/IEC 18000-2 Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Housing length103 mm Housing width80 mm Housing height40 mm Degree of protectionIP69K Connectionterminal compartment, ≤ 2.5 mm2 conductor csa Material HousingPBT Basestainless steel V4A Encapsulation compoundFermadur Installation Distance between two headsMultiplex on: ≥ 100 mm Multiplex off: ≥ 550 mm Mass700 g Classifications SystemClasscode ECLASS 11.027280401 ECLASS 10.0.127280401 ECLASS 9.027280401 ECLASS 8.027280401 ECLASS 5.127280401 ETIM 8.0EC002998 ETIM 7.0EC002998 ETIM 6.0EC002998 ETIM 5.0EC002998 UNSPSC 12.143211710
