IPT1-FP PEPPERL+FUCHS - Part number: 183956
NFS
Out of Stock - Backorder
To order from manufacturer
USD1,025.09

Import Taxes Excluded

You must be logged

IPT1-FP PEPPERL+FUCHS - Part number: 183956

PEPPERL+FUCHS

compare
IPT1-FP PEPPERL+FUCHS - Part number: 183956

Read/write station IPT1-FP IPT1-FP With integrated control interface unit Serial interfaces and field-bus interfaces selectable through lower part Read distance of up to 100 mm Write distance of up to 50 mm 3 LEDs for function indication Degree of protection IP67 Optimized reading speed for fixed codes Suited for writing of IPC11 Read/write station IPT1-FP IPT1-FP With integrated control interface unit Serial interfaces and field-bus interfaces selectable through lower part Read distance of up to 100 mm Write distance of up to 50 mm 3 LEDs for function indication Degree of protection IP67 Optimized reading speed for fixed codes Suited for writing of IPC11

MPNs 183956, PEP183956, IPT1-FP
HS Code 85176200
Weight N/A

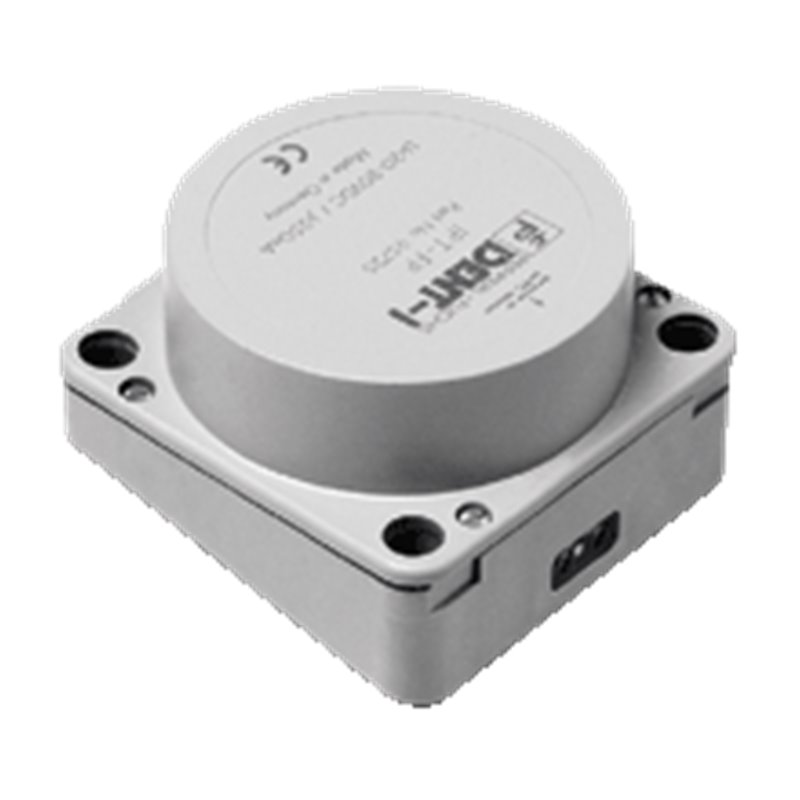

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

NFS Condition NFS
New Factory Sealed - Original
Out of Stock - Backorder
To order from manufacturer
USD1,025.09

Import Taxes Excluded

You must be logged
Sold by PLC-CITY® and shipped from Italy
We are a Specialist Partner of PEPPERL+FUCHS
Free express shipping to United States
Loader...
View all shipping services
Request a quote to know the delivery date

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Request your tailored technical service

Rely on our expert technical team for a range of personalized services: repair, programming, maintenance, and much more.

Product information

Description

Datasheet excerpt: Technical data of  IPT1-FP Product Description LF R/W system, fully assembled as configuration and test station General specifications Operating frequency125 kHz Transfer rate2 kBit/s Operating distancemaximum: 100 mm UL File NumberE87056 Indicators/operating means LED greenPower on LED yellowIPC detected LED redbus fault (when using fieldbus interfaces) Electrical specifications Rated operating voltage20 ... 30 V DC , ripple 10 %SS , PELV Power consumptionmax. 5 W , in connection with the base Galvanic isolation Operating voltage/interfacefunctional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff Mag. Field strength< 27.3 dBµA/m at 10 m Interface Physical Interface type depends on base used Directive conformity Radio equipment Directive 2014/53/EUEN 301489-1 EN 300330 EN 62368-1 RoHS Directive 2011/65/EU (RoHS)IEC/EN 63000 Standard conformity RFIDISO/IEC 18000-2 Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Degree of protectionIP67 according to EN 60529, with base Material HousingPBT Classifications SystemClasscode ECLASS 11.027280401 ECLASS 10.0.127280401 ECLASS 9.027280401 ECLASS 8.027280401 ECLASS 5.127280401 ETIM 8.0EC002998 ETIM 7.0EC002998 ETIM 6.0EC002998 ETIM 5.0EC002998 UNSPSC 12.143211710 Datasheet excerpt: Technical data of  IPT1-FP Product Description LF R/W system, fully assembled as configuration and test station General specifications Operating frequency125 kHz Transfer rate2 kBit/s Operating distancemaximum: 100 mm UL File NumberE87056 Indicators/operating means LED greenPower on LED yellowIPC detected LED redbus fault (when using fieldbus interfaces) Electrical specifications Rated operating voltage20 ... 30 V DC , ripple 10 %SS , PELV Power consumptionmax. 5 W , in connection with the base Galvanic isolation Operating voltage/interfacefunctional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff Mag. Field strength< 27.3 dBµA/m at 10 m Interface Physical Interface type depends on base used Directive conformity Radio equipment Directive 2014/53/EUEN 301489-1 EN 300330 EN 62368-1 RoHS Directive 2011/65/EU (RoHS)IEC/EN 63000 Standard conformity RFIDISO/IEC 18000-2 Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Degree of protectionIP67 according to EN 60529, with base Material HousingPBT Classifications SystemClasscode ECLASS 11.027280401 ECLASS 10.0.127280401 ECLASS 9.027280401 ECLASS 8.027280401 ECLASS 5.127280401 ETIM 8.0EC002998 ETIM 7.0EC002998 ETIM 6.0EC002998 ETIM 5.0EC002998 UNSPSC 12.143211710
