E6A2-CW5C 200P/R 0.5M - Omron - Rotary Encoders - E6A2 Series

Omron

compare
E6A2-CW5C 200P/R 0.5M - Omron - Rotary Encoders - E6A2 Series

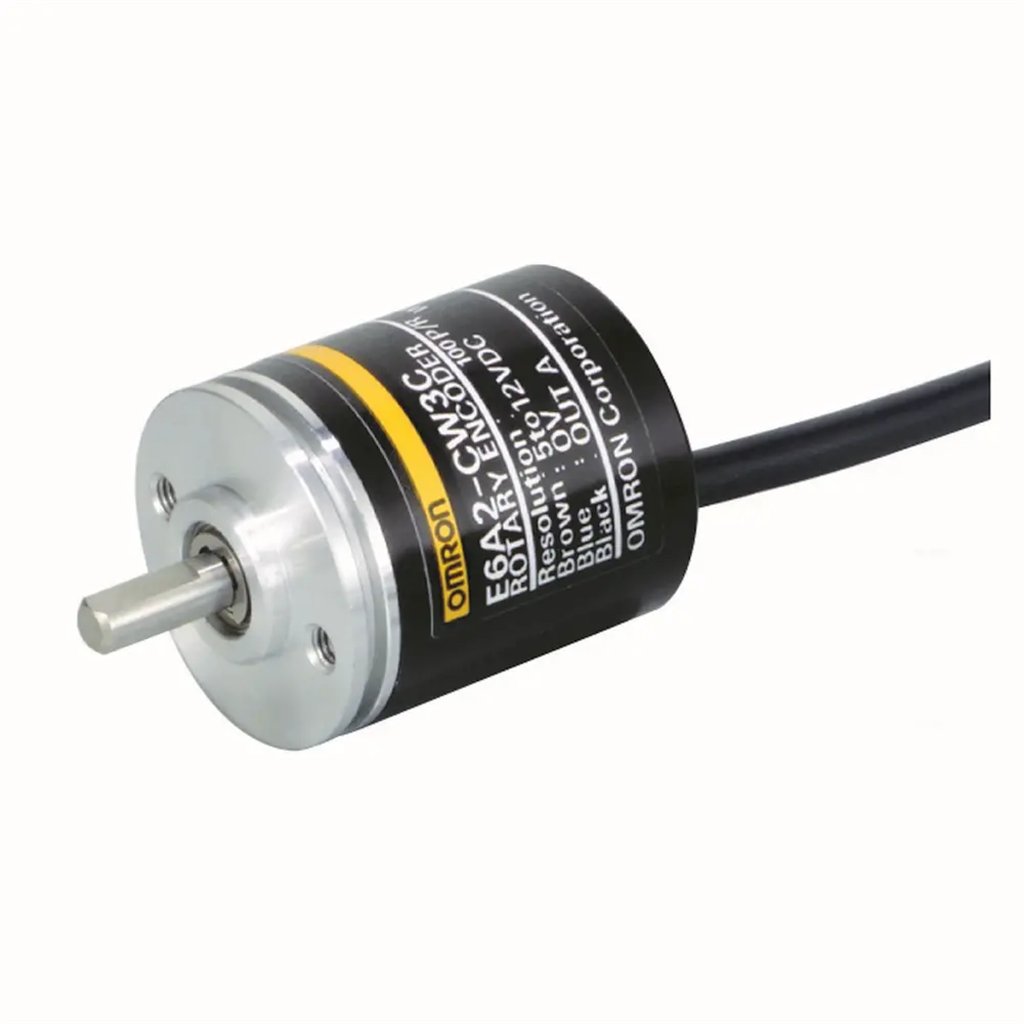

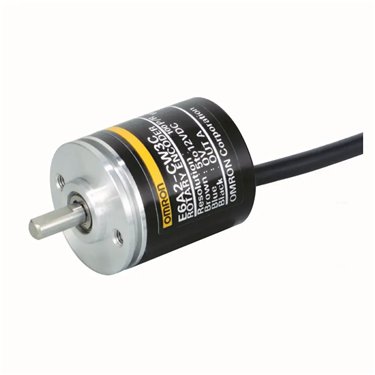

Incremental encoder diameter 25 mm 12-24 VDC channels A-B NPN resolution 200 pulses/revolution cable 0.5 m Incremental encoder diameter 25 mm 12-24 VDC channels A-B NPN resolution 200 pulses/revolution cable 0.5 m

MPNs E6A2CW5C20005M-1, OMRE6A2CW5C20005M-1, E6A2-CW5C 200P/R 0.5M
EAN 4536853366506
HS Code 90329000
Country of origin Japan
Weight 0.06 kg
Download Datasheet
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Technical specifications

Degree of protection (IP)
IP50
Degree of protection (NEMA)
Other
Housing material
Aluminium
Model
Incremental encoder
Type of electric connection
Cable
Explosion safety category for gas
None
Explosion safety category for dust
None
Max. pulses per revolution
200
Signal outputs of rotary encoder
A+B
Standard for interfaces
Other
Number of steps per revolution
200;200
Number of revolutions
5000;5000
Type of shaft encoder
Full shaft
Diameter axle
3.988;4.000 mm
Impulse rate per cycle
30000;30000
Type of transmission medium
Other
Physical measurement principle
Optical
Construction size
25 mm
