V1-W-E2-2M-PVC PEPPERL+FUCHS - Part number: 189300
NFS
Out of Stock - Backorder
To order from manufacturer
USD24.93

Import Taxes Excluded

You must be logged

V1-W-E2-2M-PVC PEPPERL+FUCHS - Part number: 189300

PEPPERL+FUCHS

compare
V1-W-E2-2M-PVC PEPPERL+FUCHS - Part number: 189300

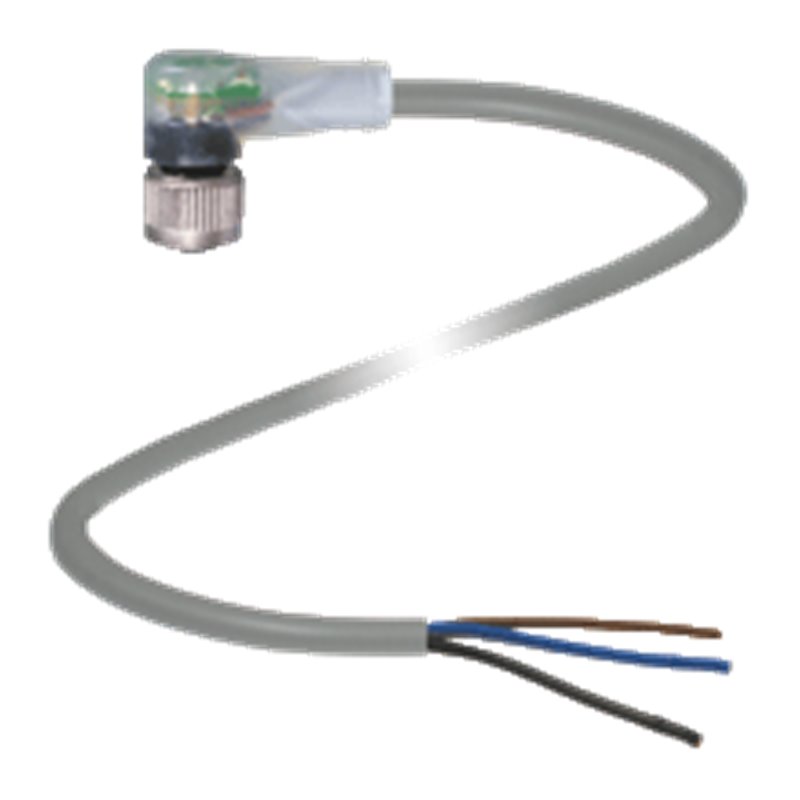

Female cordset V1-W-E2-2M-PVC V1-W-E2-2M-PVC Built-in LED, as operating and function indicator Degree of protection IP68 / IP69 Specific design protects against loosening and inaccurate installation Female cordset V1-W-E2-2M-PVC V1-W-E2-2M-PVC Built-in LED, as operating and function indicator Degree of protection IP68 / IP69 Specific design protects against loosening and inaccurate installation

MPNs 189300, PEP189300, V1-W-E2-2M-PVC
HS Code 85369090
Weight N/A
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

NFS Condition NFS
New Factory Sealed - Original
Out of Stock - Backorder
To order from manufacturer
USD24.93

Import Taxes Excluded

You must be logged
Sold by PLC-CITY® and shipped from Italy
We are a Specialist Partner of PEPPERL+FUCHS
To United States starting from USD27.36 by DHL Express Worldwide
Loader...
View all shipping services
Request a quote to know the delivery date

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Datasheet excerpt: Technical data of  V1-W-E2-2M-PVC Product Description Female cordset single-ended M12 angled A-coded, LED 3-pin, PVC cable grey General specifications Connector 1 Connectionsocket Construction typeM12 Styleangled Lockingscrew connection Number of pins3 CodingA-coded Connector 2 Connectioncable end Indicators/operating means LED greenOperating display LED yellowFunctional display pin 4 Electrical specifications Operating voltagemax. 24 V DC -20 % / +25 % Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-25 ... 70 °C (-13 ... 158 °F) Cable, flexing-5 ... 70 °C (23 ... 158 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving Sheath stripping forcemax. 80 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores3 Core cross section0.34 mm2 Cores colorCore 1: brown Core 3: blue Core 4: black Core construction19 x 0.15 mm ∅ Length2 m Cable codeLi Y YM 3 x 0,34 Material Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, transparent SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPVC Core insulationPVC Flammabilityflame-resistant Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1-W-E2-2M-PVC Product Description Female cordset single-ended M12 angled A-coded, LED 3-pin, PVC cable grey General specifications Connector 1 Connectionsocket Construction typeM12 Styleangled Lockingscrew connection Number of pins3 CodingA-coded Connector 2 Connectioncable end Indicators/operating means LED greenOperating display LED yellowFunctional display pin 4 Electrical specifications Operating voltagemax. 24 V DC -20 % / +25 % Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-25 ... 70 °C (-13 ... 158 °F) Cable, flexing-5 ... 70 °C (23 ... 158 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving Sheath stripping forcemax. 80 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores3 Core cross section0.34 mm2 Cores colorCore 1: brown Core 3: blue Core 4: black Core construction19 x 0.15 mm ∅ Length2 m Cable codeLi Y YM 3 x 0,34 Material Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, transparent SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPVC Core insulationPVC Flammabilityflame-resistant Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
