LC10-1-D 24VAC PEPPERL+FUCHS - Part number: 190922

PEPPERL+FUCHS

compare
LC10-1-D 24VAC PEPPERL+FUCHS - Part number: 190922

Loop detector LC10-1-D 24 VAC LC10-1-D 24 VAC Sensor system for vehicle detection Complete control interface for inductive loops laid beneath the surface Reliable detection with long service life Various operating modes available Boost function for increasing sensitivity Test function Version with 1 loop channel Loop detector LC10-1-D 24 VAC LC10-1-D 24 VAC Sensor system for vehicle detection Complete control interface for inductive loops laid beneath the surface Reliable detection with long service life Various operating modes available Boost function for increasing sensitivity Test function Version with 1 loop channel

MPNs 190922, PEP190922, LC10-1-D 24VAC
HS Code 85365000
Weight N/A

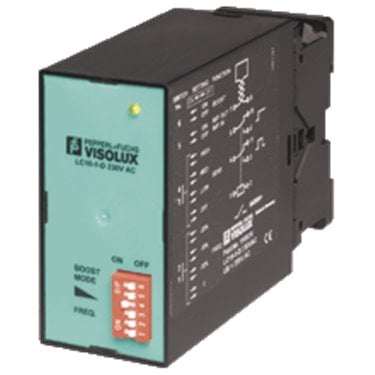

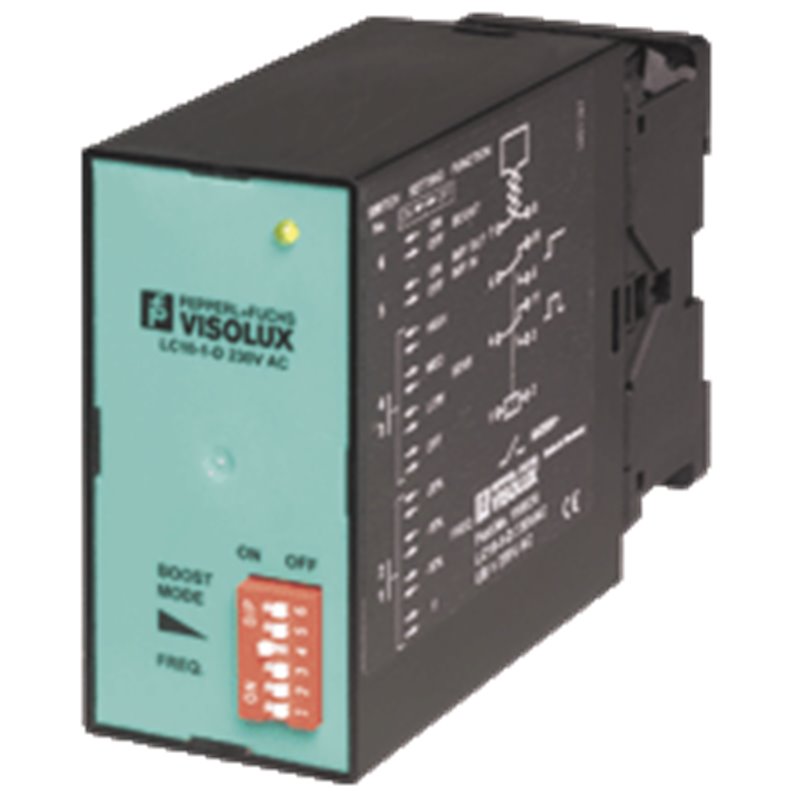

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Datasheet excerpt: Technical data of  LC10-1-D 24 VAC Product Description Universal sensor system for detecting vehicles General specifications MarkingCE Operating modePulsed and continuous signal Functional safety related parameters MTTFd306 a Mission Time (TM)20 a Indicators/operating means Control elementsDIP-switch Switching stateLED Electrical specifications Operating voltage24 V AC ( galvanically isolated from loop ) Ripple-15 %/+10 % Power consumption1.6 VA Calibration time2 s Loop inductivity100 ... 1000 µH Loop frequency20 ... 120 kHz Input Number of channels1 Output Output typerelay Switching voltage250 V AC Switching current6 A Pulse lengthperiod or 800 ms Pulse Response time100 ms Ambient conditions Ambient temperature-20 ... 70 °C (-4 ... 158 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP30 ConnectionPlug socket ; 11-pin Terminal connection ≤ 1.5 mm2 Classifications SystemClasscode ECLASS 11.027280490 ECLASS 10.0.127280490 ECLASS 9.027280490 ECLASS 8.027280490 ECLASS 5.127281001 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC001442 UNSPSC 12.146161510 Datasheet excerpt: Technical data of  LC10-1-D 24 VAC Product Description Universal sensor system for detecting vehicles General specifications MarkingCE Operating modePulsed and continuous signal Functional safety related parameters MTTFd306 a Mission Time (TM)20 a Indicators/operating means Control elementsDIP-switch Switching stateLED Electrical specifications Operating voltage24 V AC ( galvanically isolated from loop ) Ripple-15 %/+10 % Power consumption1.6 VA Calibration time2 s Loop inductivity100 ... 1000 µH Loop frequency20 ... 120 kHz Input Number of channels1 Output Output typerelay Switching voltage250 V AC Switching current6 A Pulse lengthperiod or 800 ms Pulse Response time100 ms Ambient conditions Ambient temperature-20 ... 70 °C (-4 ... 158 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP30 ConnectionPlug socket ; 11-pin Terminal connection ≤ 1.5 mm2 Classifications SystemClasscode ECLASS 11.027280490 ECLASS 10.0.127280490 ECLASS 9.027280490 ECLASS 8.027280490 ECLASS 5.127281001 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC001442 UNSPSC 12.146161510
