INX360D-F99-I2E2-7M PEPPERL+FUCHS - Part number: 209308
NFS
Out of Stock - Backorder
To order from manufacturer
USD626.96

Import Taxes Excluded

You must be logged

INX360D-F99-I2E2-7M PEPPERL+FUCHS - Part number: 209308

PEPPERL+FUCHS

compare
INX360D-F99-I2E2-7M PEPPERL+FUCHS - Part number: 209308

Inclination sensor INX360D-F99-I2E2-7M INX360D-F99-I2E2-7M E1-Type approval Measuring range 0 ... 360° Analog output 4 mA ... 20 mA Evaluation limits can be taught-in 2 programmable switch outputs High shock resistance Increased noise immunity 100 V/m Inclination sensor INX360D-F99-I2E2-7M INX360D-F99-I2E2-7M E1-Type approval Measuring range 0 ... 360° Analog output 4 mA ... 20 mA Evaluation limits can be taught-in 2 programmable switch outputs High shock resistance Increased noise immunity 100 V/m

MPNs 209308, PEP209308, INX360D-F99-I2E2-7M
HS Code 90318000
Weight 0.24 kg

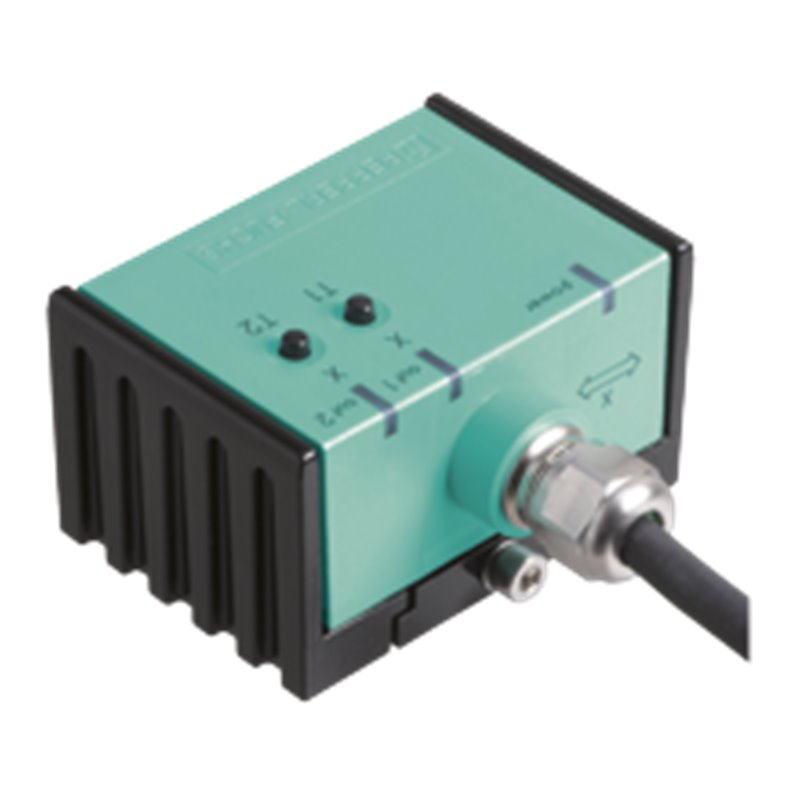

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

NFS Condition NFS
New Factory Sealed - Original
Out of Stock - Backorder
To order from manufacturer
USD626.96

Import Taxes Excluded

You must be logged
Sold by PLC-CITY® and shipped from Italy
We are a Specialist Partner of PEPPERL+FUCHS
Free express shipping to United States
Loader...
View all shipping services
Request a quote to know the delivery date

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Request your tailored technical service

Rely on our expert technical team for a range of personalized services: repair, programming, maintenance, and much more.

Product information

Description

Datasheet excerpt: Technical data of  INX360D-F99-I2E2-7M General specifications TypeInclination sensor, 1-axis Measurement range0 ... 360 ° Absolute accuracy≤ ± 0.5 ° Response delay≤ 20 ms Resolution≤ 0.1 ° Repeat accuracy≤ ± 0.1 ° Temperature influence≤ 0.027 °/K Functional safety related parameters MTTFd300 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED, green Teach-In indicator2 LEDs yellow (switching status), flashing Button2 push-buttons ( Switch points programming , Evaluation range programming ) Switching state2 yellow LEDs: Switching status (each output) Electrical specifications Operating voltage10 ... 30 V DC No-load supply current≤ 25 mA Time delay before availability≤ 200 ms Switching output Output type2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected Operating current≤ 100 mA Voltage drop≤ 3 V Analog output Output type1 current output 4 ... 20 mA Load resistor0 ... 200 Ω at UB = 10 ... 18 V 0 ... 500 Ω at UB = 18 ... 30 V Compliance with standards and directives Standard conformity Shock and impact resistance100 g according to DIN EN 60068-2-27 StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V E1 Type approval10R-04 Ambient conditions Ambient temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection type7 m, PUR cable 5 x 0.5 mm2 Housing materialPA Degree of protectionIP68 / IP69K Mass240 g Factory settings Switching output 1-30 ° ... 30 ° Switching output 2-30 ° ... 30 ° Analog output-45 ° ... 45 ° Classifications SystemClasscode ECLASS 11.027271101 ECLASS 10.0.127271101 ECLASS 9.027271190 ECLASS 8.027270790 ECLASS 5.127270790 ETIM 8.0EC003965 ETIM 7.0EC002544 ETIM 6.0EC002544 ETIM 5.0EC002544 UNSPSC 12.141114624 Datasheet excerpt: Technical data of  INX360D-F99-I2E2-7M General specifications TypeInclination sensor, 1-axis Measurement range0 ... 360 ° Absolute accuracy≤ ± 0.5 ° Response delay≤ 20 ms Resolution≤ 0.1 ° Repeat accuracy≤ ± 0.1 ° Temperature influence≤ 0.027 °/K Functional safety related parameters MTTFd300 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED, green Teach-In indicator2 LEDs yellow (switching status), flashing Button2 push-buttons ( Switch points programming , Evaluation range programming ) Switching state2 yellow LEDs: Switching status (each output) Electrical specifications Operating voltage10 ... 30 V DC No-load supply current≤ 25 mA Time delay before availability≤ 200 ms Switching output Output type2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected Operating current≤ 100 mA Voltage drop≤ 3 V Analog output Output type1 current output 4 ... 20 mA Load resistor0 ... 200 Ω at UB = 10 ... 18 V 0 ... 500 Ω at UB = 18 ... 30 V Compliance with standards and directives Standard conformity Shock and impact resistance100 g according to DIN EN 60068-2-27 StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V E1 Type approval10R-04 Ambient conditions Ambient temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection type7 m, PUR cable 5 x 0.5 mm2 Housing materialPA Degree of protectionIP68 / IP69K Mass240 g Factory settings Switching output 1-30 ° ... 30 ° Switching output 2-30 ° ... 30 ° Analog output-45 ° ... 45 ° Classifications SystemClasscode ECLASS 11.027271101 ECLASS 10.0.127271101 ECLASS 9.027271190 ECLASS 8.027270790 ECLASS 5.127270790 ETIM 8.0EC003965 ETIM 7.0EC002544 ETIM 6.0EC002544 ETIM 5.0EC002544 UNSPSC 12.141114624
