7MC7500-1CC26-2BA2 - Siemens

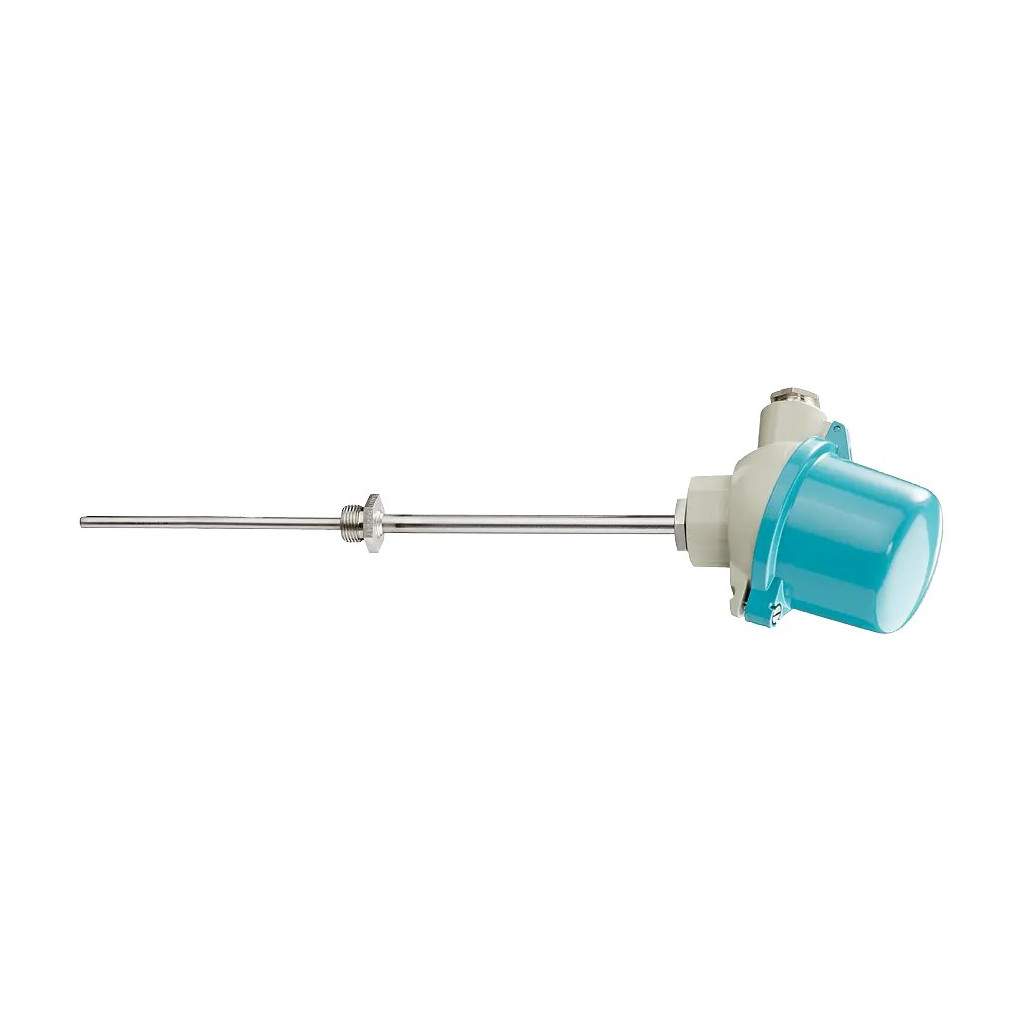

SITRANS TS500 Temperature sensor in modular design, for installation in existing thermowells Material measuring insert: - for RTD: 316L/316Ti - for TC: Alloy 600 Design of the temp. sensor: For existing thermowells (with explosion protection, observe minimum thickness) Thread to the thermowell G 1/2" (1/2"BSPP) Insertion length untensioned: U = 260 mm Diameter of the measuring tip: 6mm Extension length EU type: X = 139 mm (M = 155 mm) Alignable sensor spring at DIN measuring insert Connection head type: BB0; Aluminum; Hinged cover small; IP65 Meas. range: -50 ... 400Cel; Sensor quant., Type, Accuracy 1xPt100, Cl.A -30 ... 300Cel; Basic version SITRANS TS500 Temperature sensor in modular design, for installation in existing thermowells Material measuring insert: - for RTD: 316L/316Ti - for TC: Alloy 600 Design of the temp. sensor: For existing thermowells (with explosion protection, observe minimum thickness) Thread to the thermowell G 1/2" (1/2"BSPP) Insertion length untensioned: U = 260 mm Diameter of the measuring tip: 6mm Extension length EU type: X = 139 mm (M = 155 mm) Alignable sensor spring at DIN measuring insert Connection head type: BB0; Aluminum; Hinged cover small; IP65 Meas. range: -50 ... 400Cel; Sensor quant., Type, Accuracy 1xPt100, Cl.A -30 ... 300Cel; Basic version
