Weld-immune inductive sensors

BES 516-113-SA2-S4-CW BALLUFF - Part Number: BES02J4

Inductive proximity sensor / switch - magnetic field-immune - weld-immune - Balluff - model BES 516-113-SA2-S4-CW - 2mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) or NC (Normally Closed) operation) - Cylindrical / barrel fully threaded body with M12 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -4...+212°F / -20...+100°C ambient - IP67 - PTFE-coated stainless steel housing + PTFE (Polytetrafluoroethylene) sensing surface - 1000Hz / 1kHz max. switching frequency - Flush mounting - equivalent to BES516113SA2S4CW

compare

USD313.38

Out of Stock - Backorder

NFS

BES 516-325-S4-CW BALLUFF - Part Number: BES02J5

Inductive proximity sensor / switch - magnetic field-immune - weld-immune - Balluff - model BES 516-325-S4-CW - 2mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M12 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - IP67 - PTFE-coated stainless steel housing + PTFE (Polytetrafluoroethylene) sensing surface - 1000Hz / 1kHz max. switching frequency - Flush mounting - equivalent to BES516325S4CW

compare

USD153.91

Out of Stock - Backorder

NFS

BES 516-325-S4-W BALLUFF - Part Number: BES02J6

Inductive proximity sensor / switch - magnetic field-immune - weld-immune - Balluff - model BES 516-325-S4-W - 2mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M12 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - IP67 - PTFE-coated brass housing + LCP (Liquid Crystal Polymer) sensing surface - 1000Hz / 1kHz max. switching frequency - Flush mounting - equivalent to BES516325S4W

compare

USD160.48

Out of Stock - Backorder

NFS

BES 516-325-SA96-S4-W BALLUFF - Part Number: BES02J8

Inductive proximity sensor / switch - magnetic field-immune - weld-immune - Balluff - model BES 516-325-SA96-S4-W - 2mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M12 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - IP67 - PTFE-coated brass housing + Coated Ceramic sensing surface - 1000Hz / 1kHz max. switching frequency - Flush mounting - equivalent to BES516325SA96S4W

compare

USD313.38

Out of Stock - Backorder

NFS

BES 516-356-S4-CW BALLUFF - Part Number: BES02JM

Inductive proximity sensor / switch - magnetic field-immune - weld-immune - Balluff - model BES 516-356-S4-CW - 4mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M12 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - IP67 - PTFE-coated stainless steel housing + PTFE (Polytetrafluoroethylene) sensing surface - 1000Hz / 1kHz max. switching frequency - non-flush mounting - equivalent to BES516356S4CW

compare

USD153.91

Out of Stock - Backorder

NFS

BES 516-356-S4-W BALLUFF - Part Number: BES02JN

Inductive proximity sensor / switch - magnetic field-immune - weld-immune - Balluff - model BES 516-356-S4-W - 4mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M12 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - IP67 - PTFE-coated stainless steel housing + PTFE (Polytetrafluoroethylene) sensing surface - 1000Hz / 1kHz max. switching frequency - non-flush mounting - equivalent to BES516356S4W

compare

USD169.74

Out of Stock - Backorder

NFS

BES M08MH1-PSC20B-S04G-101 BALLUFF - Part Number: BES02PU

Inductive proximity sensor / switch - weld-immune - Balluff - model BES M08MH1-PSC20B-S04G-101 - 2mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M8 threads - 12-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - IP67 - Nickel-plated brass housing + Coated Ceramic sensing surface - 700Hz max. switching frequency - Flush mounting - equivalent to BESM08MH1PSC20BS04G101

compare

USD184.56

Out of Stock - Backorder

NFS

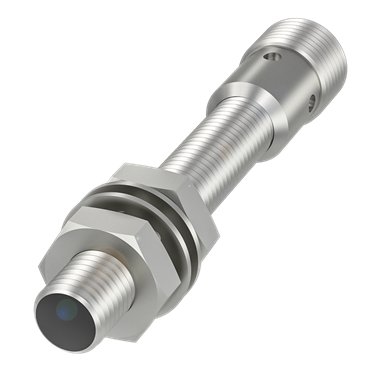

BES M08MH1-PSC30B-S04G-101 BALLUFF - Part Number: BES02PW

Inductive proximity sensor / switch - weld-immune - Balluff - model BES M08MH1-PSC30B-S04G-101 - 3mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M8 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - IP67 - Chrome-plated brass housing + Coated Ceramic sensing surface - 1000Hz / 1kHz max. switching frequency - Quasi-flush mounting - equivalent to BESM08MH1PSC30BS04G101

compare

USD197.69

Out of Stock - Backorder

NFS

BES M12EI-PSC40B-S04G-S03 BALLUFF - Part Number: BES056A

Inductive proximity sensor / switch with full metal / Steelface design - weld-immune - Balluff - model BES M12EI-PSC40B-S04G-S03 - 4mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M12 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for -13...+158°F / -25...+70°C ambient - Rated for 60bar - IP67 - Coated stainless steel housing + Coated stainless steel sensing surface + PTFE (Polytetrafluoroethylene) sensing surface - 500Hz max. switching frequency - Flush mounting - equivalent to BESM12EIPSC40BS04GS03

compare

USD148.36

Out of Stock - Backorder

NFS

BES M12MI-PSC30B-S04G-W BALLUFF - Part Number: BES02K1

Inductive proximity sensor / switch - magnetic field-immune - weld-immune - Balluff - model BES M12MI-PSC30B-S04G-W - 3mm sensing range - Pre-equipped with a 4-pin M12 A-coded male connector - 1 x digital output (PNP transistor; 200mA) (NO (Normally Open) operation) - Cylindrical / barrel fully threaded body with M12 threads - 10-30Vdc (12Vdc / 24Vdc nom.) supply voltage - Rated for +41...+140°F / +5...+60°C ambient - IP67 - PTFE-coated brass housing + LCP (Liquid Crystal Polymer) / PTFE (Polytetrafluoroethylene) sensing surface - 300Hz max. switching frequency - Flush mounting - equivalent to BESM12MIPSC30BS04GW

compare

USD166.03

Out of Stock - Backorder
