VB34-2500 PEPPERL+FUCHS - Part number: 183809
NFS
Out of Stock - Backorder
To order from manufacturer
USD9,285.50

Import Taxes Excluded

You must be logged

VB34-2500 PEPPERL+FUCHS - Part number: 183809

PEPPERL+FUCHS

compare
VB34-2500 PEPPERL+FUCHS - Part number: 183809

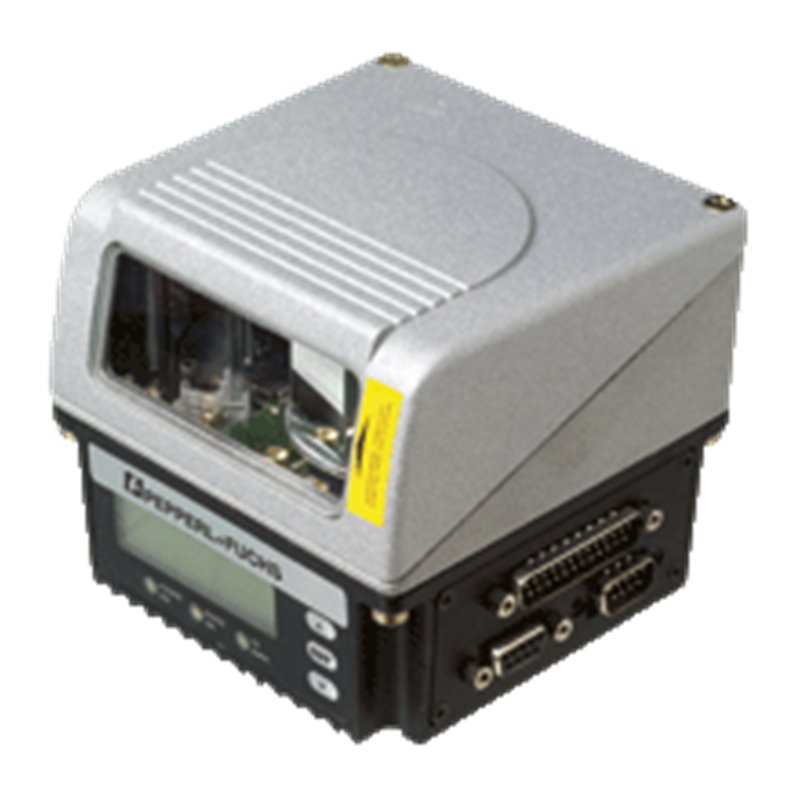

Barcode scanner VB34-2500 VB34-2500 Optimized for the requirements of the automobile industry Dynamic focusing system Fast Lonworks interface for master/slave configurations Display and keypad for parameter settings Barcode scanner VB34-2500 VB34-2500 Optimized for the requirements of the automobile industry Dynamic focusing system Fast Lonworks interface for master/slave configurations Display and keypad for parameter settings

MPNs 183809, PEP183809, VB34-2500
HS Code 84718000
Weight 1.5 kg
The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

NFS Condition NFS
New Factory Sealed - Original
Out of Stock - Backorder
To order from manufacturer
USD9,285.50

Import Taxes Excluded

You must be logged
Sold by PLC-CITY® and shipped from Italy
We are a Specialist Partner of PEPPERL+FUCHS
Free express shipping to United States
Loader...
View all shipping services
Request a quote to know the delivery date

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Request your tailored technical service

Rely on our expert technical team for a range of personalized services: repair, programming, maintenance, and much more.

Product information

Description

Datasheet excerpt: Technical data of  VB34-2500 Product Description Barcode scanner General specifications Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class2 Wave length650 nm Beam divergence< 1.5 mrad Pulse length0.097 ms Repetition rate500 Hz max. pulse energy0.39 µJ Scan rate600 ... 1200 s-1 , programmable Read distance500 ... 2500 mm Resolutionmax: 0.2 mm ( 8 mils ) Indicators/operating means Operation indicatorLED green: Power on , LED yellow: Trigger phase active (PHASE ON) Data flow indicatorLED green flashing: Data transfer carried out (TX-DATA) Control elementsKeypad (3 membrane keys) for parameter settings on the LCD display Parameterization indicatorLC display Electrical specifications Operating voltage15 ... 30 V DC Power consumptionmax. 20 W Interface Interface typeserial , RS-232 and RS-485 up to 115.2 kBit/s Input 1 Input type3 digital inputs and external trigger Output Switching voltagemax. 30 V DC Switching currentmax. 50 mA Voltage drop0.3 V at load current ≤ 10 mA Compliance with standards and directives Directive conformityEMC Directive 2004/108/EC Standard conformity Noise immunityEN 61000-6-2:2005 Emitted interferenceEN 55022 Electrical safetyEN 60950-1:2006 Laser classIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature0 ... 40 °C (32 ... 104 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Relative humidity90 % , noncondensing Shock resistanceIEC 68-2-27 Test EA 30G; 11 ms; 3 impacts on each axis Vibration resistanceIEC 68-2-6 Test FC 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis Mechanical specifications Degree of protectionIP64 ConnectionInterface (primary, secondary) : 25-pin Sub-D connector , Lonworks: : 9-pin Sub-D socket , 9-pin Sub-D connector Material HousingAluminum Mass1500 g Classifications SystemClasscode ECLASS 11.027280102 ECLASS 10.0.127280102 ECLASS 9.027280102 ECLASS 8.027280102 ECLASS 5.127280102 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211701 Datasheet excerpt: Technical data of  VB34-2500 Product Description Barcode scanner General specifications Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class2 Wave length650 nm Beam divergence< 1.5 mrad Pulse length0.097 ms Repetition rate500 Hz max. pulse energy0.39 µJ Scan rate600 ... 1200 s-1 , programmable Read distance500 ... 2500 mm Resolutionmax: 0.2 mm ( 8 mils ) Indicators/operating means Operation indicatorLED green: Power on , LED yellow: Trigger phase active (PHASE ON) Data flow indicatorLED green flashing: Data transfer carried out (TX-DATA) Control elementsKeypad (3 membrane keys) for parameter settings on the LCD display Parameterization indicatorLC display Electrical specifications Operating voltage15 ... 30 V DC Power consumptionmax. 20 W Interface Interface typeserial , RS-232 and RS-485 up to 115.2 kBit/s Input 1 Input type3 digital inputs and external trigger Output Switching voltagemax. 30 V DC Switching currentmax. 50 mA Voltage drop0.3 V at load current ≤ 10 mA Compliance with standards and directives Directive conformityEMC Directive 2004/108/EC Standard conformity Noise immunityEN 61000-6-2:2005 Emitted interferenceEN 55022 Electrical safetyEN 60950-1:2006 Laser classIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature0 ... 40 °C (32 ... 104 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Relative humidity90 % , noncondensing Shock resistanceIEC 68-2-27 Test EA 30G; 11 ms; 3 impacts on each axis Vibration resistanceIEC 68-2-6 Test FC 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis Mechanical specifications Degree of protectionIP64 ConnectionInterface (primary, secondary) : 25-pin Sub-D connector , Lonworks: : 9-pin Sub-D socket , 9-pin Sub-D connector Material HousingAluminum Mass1500 g Classifications SystemClasscode ECLASS 11.027280102 ECLASS 10.0.127280102 ECLASS 9.027280102 ECLASS 8.027280102 ECLASS 5.127280102 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211701
